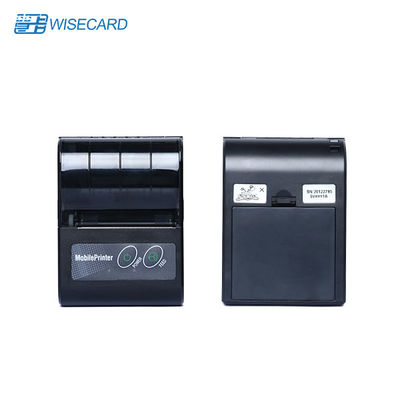

Thermal receipt printer impresora SDK, portable, by Bluetooth, 58mm, for android and IOS
Applications:
Medical Equipment
Mobile POS/Retail
Hospitality
Packing citation
Deliveries
Onboard Transportation
Field reparts/Installation
Warehouse/ logistics
Utility billing/meter reading
Feature:
★ Portable device suited for outdoor usage
★ Black mark paper location sensor
★ Low battery indicator(7.4V,2000mAh)
★ Equipped with lithium battery for 8 hours continuous work
★ Vairous interface communication and interface capabilites
★ Easy paper loading
★ High printing speed , up to 80mm/s.
| Model |
PTP-II |
| Dimension |
79*110*45mm |
| Print method |
Line thermal printer |
| Paper width |
57mm |
| print width |
48mm |
| Weight ( g) |
235 (not including the paper roll) |
| Max diameter of paper roll |
40mm |
| Dot per lie |
384 dots/line |
| internal characters |
ASCII CH(8x16,9x17,9x24,12×24); GBK(16x16,24×24) |
| Print speed |
50~80mm/s |
| Life cycle time |
50km(printing density under 12.5%)/100 million pulses |
| text and graphic Support |
English, figure, symbol, Chinese, graph, curve, icon pre-stored, barcode |
| (CODE39EAN13EAN8 CODABARCODE128CODE93ITF) |
| QR code ,PDF417 |
| Dot pitch (resolution) |
203DPI/8 dots/mm |
| interface |
IrDa/Raw-IR/wifi/bluetooth+RS232+Mini USB |
| Power |
2000mAh 7.4V rechargeable Lithium battery |
| Recharge adapter |
Stand by recharging / AC adapter |
| Self-check |
Without paper / cover open |
| Black mark test |
Supported |
| Paper feeding |
Easy paper loading |
| commands |
ESC/POS compatible with order sets |
| Paper cut |
By hands |
| operate setting |
Temperature -10°C~50°C ; Humidity 20%~85% |
| Recharge Setting |
Temperature 5°C~40°C; Humidity 20%~85% |
| Storage Setting |
Temperature -20°C~70°C ; Humidity 5%~95% |
| Standard accessories |
Long-term preservable paper, AC adapter, li-ion battery. USB cable, leather coat |
| Optional accessories |
Serial interface cable/CD |
FAQ:
Q1. How do we proceed an order?
It is much appreciated if you could tell us your exact requirements/specification then we will send a proforma invoice for you to make payment. Payment via Western Union, Paypal or T/T. Samples will be ready after full payment received. For bulk order, we require 30% deposit in advance, pay the 70% balance before shipping.
Q2. How to do the freight calculation?
Shipment charges are calculated according to the higher of actual or volumetric weight and any shipment may be re-weighed and re-measured by the carrier to confirm this calculation.
Q3. Do you have warranty? Can you give warranty of your products?
Yes, we have warranty of 1 year period.
we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with products' quality or service.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
