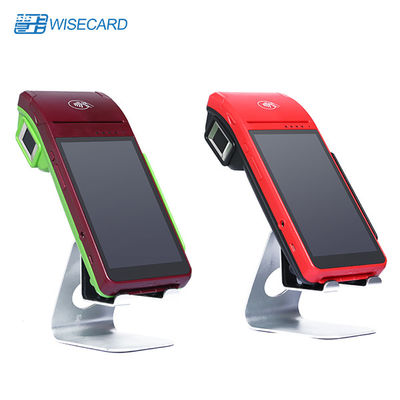

Handheld Android Pos Terminal With Thermal Printer Of Restaurant Automatic Wifi Pos Printer

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: Wisecard
Certification: PCI CE Rohs Model Number: T90FA

Detail Information

Processor: 4 Core ARM Cortex-A53 OS: Android 7 Or Above
Printing Resolutions: 8 Dots/mm Fingerprint: Aratek, FBI Certified
Battery: 7.4V5800mAh Number Of Columns: 32columns/line
Dimension And Weight: 203mm*85mm*53mm, 480g With Battery Communication: 2G / 3G / 4G /wifi, Bluetooth
High Light:

EMV Wireless Handheld POS Terminal

,

Rohs PCI Smart Payment Terminal

,

Android 7.0 QR Code POS Terminal

Product Description

Handheld Android Pos Terminal With Thermal Printer Of Restaurant Automatic Wifi Pos Printer



WCT All in One Android Tablet POS Machine is an ideal android tablet pos system for all your daily tasks, providing laptop performance, tablet mobility, a stunning full HD and IPS touchscreen. The tablet is equipped with MT6797 10-core processor and boosts up to 2.3 GHz. Utilising Mali-T880 GPU and high config(4GB memory+64GB storage), WCT-T90FA brings a smooth software experience, high quality 4K media decoding and exceptional battery life.









WCT-S8 Android POS Configuration
Type Product Spec
Platform Processor MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC, TF Card Supported
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT NA
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 210mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)





FAQ:



1. What about your MOQ?

No, MOQ, we support sample order.



2. What about delivery time?

For sample,3 days, bulk order usually 7-15days, depends on quantity.



3. How about Payment term?

T/T is acceptable.



4. Can you send samples for confirmation? Are they free?

Yes, of course, but no free, sorry.



5. Can Customize, modify and develop products according to our requirements?

Yes, we provide OEM and ODM service. Because we have our R&D department.



6. How can your printer works with our system?

All printers will come with a CD driver, install it, then can print.



7. How about the warranty of your products?

7 days replace,1-year free maintenance.

Handheld Android Pos Terminal With Thermal Printer Of Restaurant Automatic Wifi Pos Printer 0Handheld Android Pos Terminal With Thermal Printer Of Restaurant Automatic Wifi Pos Printer 1



Handheld Android Pos Terminal With Thermal Printer Of Restaurant Automatic Wifi Pos Printer 2



Company Information:

Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.



Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.



Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.



Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
