New POS 2021 Android pos system 58mm printer card readers and touch point of sale system handheld pos system

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: Wisecard
Certification: PCI CE Rohs Model Number: S8

Detail Information

Processor: MTK MT8735 USIM Card Slots: 4 PSAM Slots, 2 SIM Slots
Touch Panel: G+F+F, Capacitive Color Touch,Multi Touch, Signature Capable, Video Capable Physical Key: Power ON/OFF, Volumn Up, Volumn Down.
Virtual Keypad: Home Key, Function Key, Numeric Keys REAR Camera: 8Mega Pixels, CMOS, AF, QR/2D Barcode, JPEG Picture, Video.
Contactless Card: NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 Smart Card: EMV & PBOC Compliant
High Light:

EMV Wireless Handheld POS Terminal

,

Rohs PCI Smart Payment Terminal

,

Android 7.0 QR Code POS Terminal

Product Description

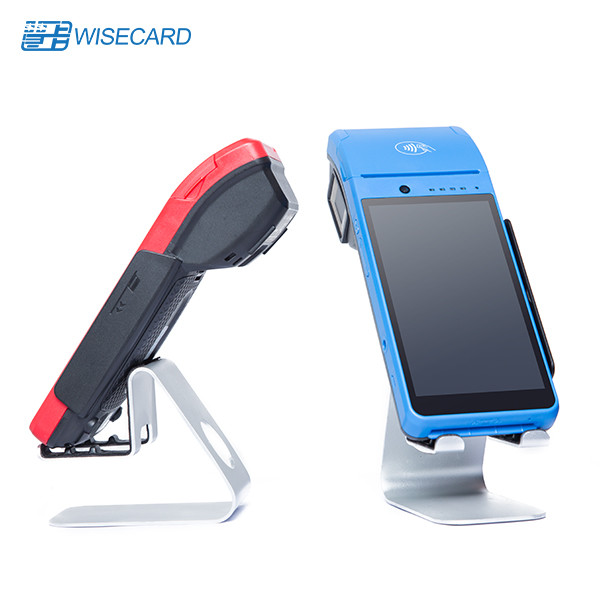

New POS 2021 Android pos system 58mm printer card readers and touch point of sale system handheld pos system



★ Elastic Wrist Strap

Considering the need to move frequently, the elastic wrist strap design of the TPS320 can hold the product steadily and prevents falls.

★ More Options

Optional functions adapt to your actual needs, such as Fingerprint Reader, IC Card Reader, Charging Base, Fiscal Memory, and other accessories, etc.

★ Applications

WCT-S8 POS Machine can be used for payment in quite scenarios: Retail Stores; Mobile Charges; Retail Management; Parking Charges Supermarket; Utilities; Lotteries.



WCT-S8 Android POS Configuration
Type Product Spec
Platform Processor MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 203mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)





FAQ

Q: How is the quality?
A: We have very strict quality controlling which promises the goods we produced are always of the best quality.



Q: How long is your guarantee period ?
A: 1 year warranty, full responsibility for warranty. We are very confident in our products, if any issue, we will deal with it immediately.



Q: How is the Service?
A: We (wisecard tech) have global after-sales service network.



Q: Can we print our Logo on the products? What is MOQ?

A: We can print your own Logo on it as you like. There is no MOQ for stock models. For customized models will depending on your requests. Different methods are used for logos, please ask your Key Account MGR for more information on this issue, we will surely find the right solution for you!





New POS 2021 Android pos system 58mm printer card readers and touch point of sale system handheld pos system 0New POS 2021 Android pos system 58mm printer card readers and touch point of sale system handheld pos system 1New POS 2021 Android pos system 58mm printer card readers and touch point of sale system handheld pos system 2
