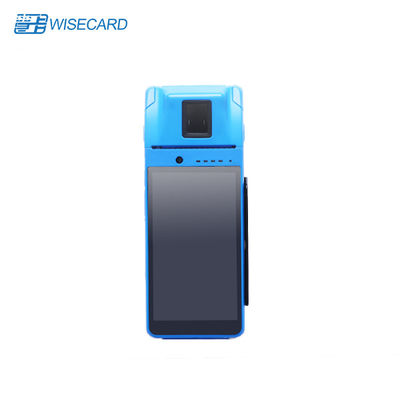

WIFI Handheld Smart POS Terminal With NFC Reader Loyalty Program System
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | 1 pc per box, 10 pc per carton | Delivery Time : | 1-4 weeks |
| Payment Terms : | T/T | Supply Ability : | 10000 Set/Sets per Month |
| Place of Origin: | China | Brand Name: | Wisecard |
|---|---|---|---|
| Certification: | PCI CE Rohs | Model Number: | T90FO |
|
Detail Information |
|||
| Screen: | 5.5 Inch Touch Screen | Battery: | 7.4V5800mAh |
|---|---|---|---|
| Printer: | Thermal Printer Inbedded | Front Camera: | 2M Pixel |
| CardReader: | Contactless, Contact, Magstripe | Color: | Can Be Customized |
| Paper: | Thermal Roll Paper (standard) 57*40 Mm | Effective Printing Area: | 48mm |
| Highlight: | Rugged Pda Wireless Android POS,5800mAh Wireless Android POS,4G LTE Handheld Android POS |
||
Product Description
Hot sale WCT-T90 Android 7.0 handheld PDA Machines Mobile Touch screen POS System with Printer
★ Android 7.0 OS and Quad-Core
The performance of WCT-S8 is higher than the general level on the market since it's powered by Android 7.0 system (also called Android Oreo) and a Quad-Core processor with 1GB DDR+8GB memory or 2GB + 16GB.
★ Smart Payments All In One Machine
WCT-S8 supports reading Contact Card, NFC card, IC card, QR-code, Dual interface card, magnetic card. So it can serve for contact and contactless payment, QR-code Payment, smart card payment. Support ISO14443 Type A/B, ISO/IEC 14443&7816, ISO18092 compliant.
★ High-speed Printer
The thermal Printer ensures clear readability 58mm printing with printing speed increased by 10%.
★ 5800mAH Large Battery Super Endurance
WCT-S8 comes with a massive 5800mAh battery. This means that you can operate it much longer and that you need to charge it only occasionally.
| WCT-T90FO Android POS Configuration: | ||
| Type | Product Spec | |
| Platform | Processor | MTK MT8735 (4-Core ARM Cortex-A53,1.3GHz) |
| RAM | 1GB / 2GB LPDDR3 | |
| FLASH | 8GB / 16GB EMMC, TF Card Supported | |
| OS | Android 7.0 Security Payment OS | |
| Security Processor | MAXIM MAX32555 (Deep-Cover Secure microcontroller) | |
| Wireless | Wireless Standard | LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
| 4G | LTE-FDD: B1/B3/B8 (TBD) | |
| TDD-LTE: B38/B39/B40/B41 | ||
| 3G | UMTS/HSPA/HSPA+/DC-HSPA+: B1/B8 | |
| TDS-CDM: B34/B39 | ||
| EVDO: BC0 | ||
| 2G | EDGE/GPRS: B3/B8 | |
| WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
| BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
| USIM | Card Slots | 4 PSAM slots, 2 SIM slots |
| GPS | GPS | GPS, GLONASS |
| LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
| LCD | 5.5 inch | |
| Touch Panel | G+F+F, Capacitive Color Touch, Multi Touch, signature capable, video capable | |
| Keypad | Physical key | Power ON/OFF, Volume up, Volume down. |
| Virtual Keypad | Home Key, Function key, Numeric Keys. | |
| Audio | Speaker | 1 W x 1 |
| Microphone | Voice input | |
| USB | USB Standard | USB Type C 2.0 |
| Other | Charge Battery, OTG support | |
| Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
| FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. | |
| NFC | Standard | ISO14443 type A/B (ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support) |
| Spectrum | 13.56MHz | |
| IC card | Contactless Card | NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
| EMV card | Smart Card | EMV & PBOC Compliant |
| MSR | Magnetic Card | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
| Battery | Battery type | Li-ion polymer battery |
| Capacity | 3.7V, 5800mAh | |
| Charger | 5V/2A | |
| Certification | ICC | EMV contact L1 / PBCO L1 |
| EMV contact L2 / PBOC L2 | ||
| NFC | EMV contactless L1 / qPBOC L1 | |
| EMV contactless L2 / qPBOC L2 | ||
| Security | PCI 5.0 | |
| UPTS 2.0 | ||
| Operating environment | Temperature | -5 to +50 °C |
| Relative humidity | 10 % to 85 % RH | |
| Storage environment | Temperature | -10 to +60 °C |
| Relative humidity | 10 % to 90 % RH | |
| Size and Weigt | Dimension and Weight | 210mm*85mm*53mm, 480g with battery |
| Micro Printer | Printing method | Thermal-line dot method |
| Paper | Thermal roll paper (standard) 57*40 mm | |
| Effective Printing area | 48mm | |
| Speed | Maximum 70mm/sec(480 dot line/sec) | |
| Printing resolutions | 8 dots/mm | |
| Character | 12*24dots and 24*48 dots | |
| Number of columns | 32columns/line | |
| Printing head life | Pulse resistance:100 million pulses/dot (under our standard conditions); | |
|
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) |
||
Quick Detail:
FAQ
Q: Can you make OEM or ODM for products?
A: OEM and ODM products is available for customer, as long as customer meet the MOQ. Also we have engineers for logo and products design for customers.
Q:What about delivery time?
A: Samples and small order within 5 working days; bulk order delivery kindly check with seller.
Q: What about MOQ?
A: For pos terminal, we can accept sample order firstly, so there is not limit for MOQ. For label paper/receipt paper ect.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
