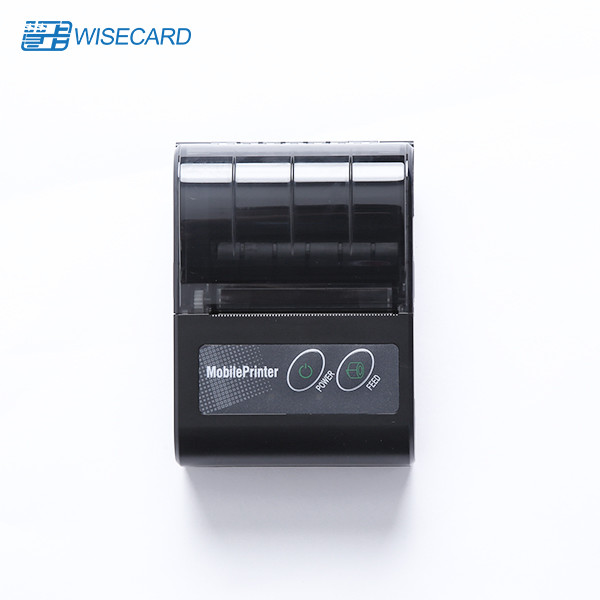

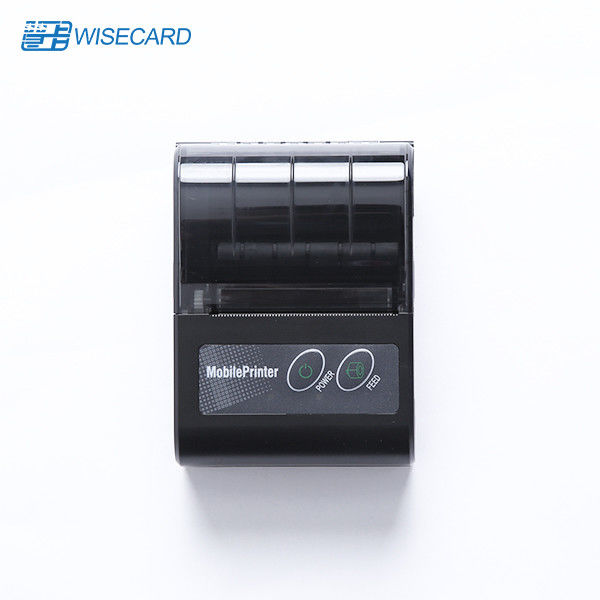

58mm Mini Thermal Portable Android Tablet Mobile Printer
Product Specification:
Low noise direct thermal printing
With cash drawer interface
USB+Bluetooth interface
Exquisite design and easy to use
Long-life, high print quality, durable performance
Easy paper loading design, widely used in various industries
Offers drivers for Windows, Linux, and MAC operating systems
| Model |
PTP-II |
| Dimension |
79*110*45mm |
| Print method |
Line thermal printer |
| Paper width |
57mm |
| print width |
48mm |
| Weight ( g) |
235 (not including the paper roll) |
| Max diameter of paper roll |
40mm |
| Dot per lie |
384 dots/line |
| internal characters |
ASCII CH(8x16,9x17,9x24,12×24); GBK(16x16,24×24) |
| Print speed |
50~80mm/s |
| Life cycle time |
50km(printing density under 12.5%)/100 million pulses |
| text and graphic Support |
English, figure, symbol, Chinese, graph, curve, icon pre-stored, barcode |
| (CODE39EAN13EAN8 CODABARCODE128CODE93ITF) |
| QR code ,PDF417 |
| Dot pitch (resolution) |
203DPI/8 dots/mm |
| interface |
IrDa/Raw-IR/wifi/bluetooth+RS232+Mini USB |
| Power |
2000mAh 7.4V rechargeable Lithium battery |
| Recharge adapter |
Stand by recharging / AC adapter |
| Self-check |
Without paper / cover open |
| Black mark test |
Supported |
| Paper feeding |
Easy paper loading |
| commands |
ESC/POS compatible with order sets |
| Paper cut |
By hands |
| operate setting |
Temperature -10°C~50°C ; Humidity 20%~85% |
| Recharge Setting |
Temperature 5°C~40°C; Humidity 20%~85% |
| Storage Setting |
Temperature -20°C~70°C ; Humidity 5%~95% |
| Standard accessories |
Long-term preservable paper, AC adapter, li-ion battery. USB cable, leather coat |
| Optional accessories |
Serial interface cable/CD |
