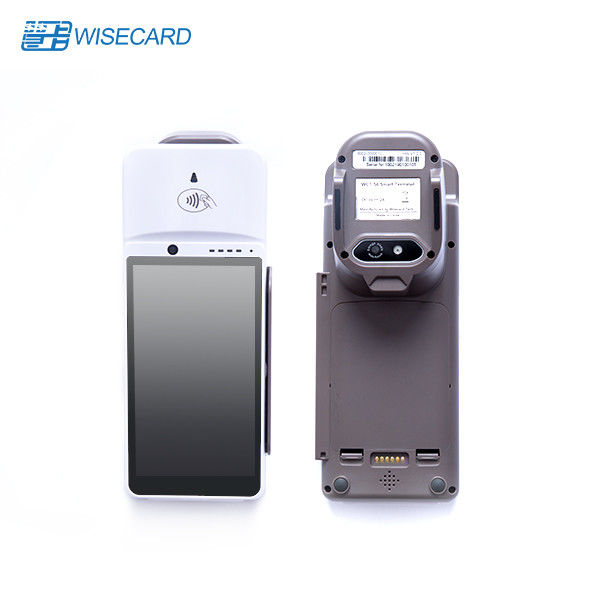

MSR IC NFC Gprs Payment POS Terminal Handheld PBOC Android 7

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Paper Box Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 units per month
Place of Origin: China Brand Name: Wisecard
Certification: CE Rohs Model Number: WCT-S6

Detail Information

Standard: ISO14443 Type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa Support ) OS: Android 7 Or Above
FRONT Camera: 2Mega Pixels, CMOS, JPEG Picture, Video. Relative Humidity: 10 % To 90 % RH
IC Card: ISO 7816 (1.8V / 3V / 5V T=0, T=1.) Standards: PCI EMV PBOC
Communication: 2G / 3G / 4G /wifi, Bluetooth NFC Indicator: Blue/yellow/green/red
High Light:

MSR IC Payment POS Terminal

,

NFC Gprs Payment POS Terminal

,

PBOC Handheld POS Terminal

Product Description

Handheld MSR IC NFC Gprs Punto De Venta Payment POS Terminal


WCT-S6 is a four core Android OS smart POS terminal with differentiating security method of latest finger vein module which makes it bring you highest security level.



WCT-T60 Android POS Configuration:
Type Product Specification:
Platform Application Processor MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 2GB LPDDR3
FLASH 16GB EMMC
OS Android 7.0
Security Processor MAX32555 (DeepCover Secure microcontroller)
MEMORY 60MHz Core Operating Frequency
512KB Dual-Bank Flash Memory with Cache
96KB System SRAM
1KB AES Self-Encrypted NVSRAM
256-Bit Flip-Flop-Based Battery-Backup AES Key Storage
Wireless Wireless Standard LTE-FDD/TDD-LTE/UMTS/HSPA/HSPA+/DC-HSPA+/EVDO/TDS-CDMA/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM USIM 2 slots
GPS GPS GPS, GLONASS
Verification Verification Finger Vein Biometric Verification Module
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive,Multi Touch.
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Serial Port RS232 POGO PIN ON REAR CASE
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Standard ISO 7816 (1.8V / 3V / 5V T=0, T=1.)
PSAM card PSAM 4 slots ( compliant with ISO7816 )
MSR Standard ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Backup battery coin battery CR2032
LED indicator Status Triple color LED ( RED/GREEN/Orange)
NFC indicator blue/yellow/green/red
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH

FAQ

1. How do we proceed an order?

It is much appreciated if you could tell us your exact requirements/specification then we will send a proforma invoice for you to make payment. Payment via Western Union, Paypal or T/T. Samples will be ready after full payment received. For bulk order, we require 50% deposit in advance, pay the 50% balance before shipping.



2. What do you offer?

Wisecard supply both hardware and software of POS system. We have POS terminals with Linux, WinCE, Android and other systems, wireless printer, signature pad, keypad/pin-pad, POS accessories, etc.



3. How to do the freight calculation?

Shipment charges are calculated according to the higher of actual or volumetric weight and any shipment may be re-weighed and re-measured by the carrier to confirm this calculation.



4. Do you have warranty? Can you give warranty of your products?

Yes, we have warranty of 1 year period.

we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with products' quality or service.

MSR IC NFC Gprs Payment POS Terminal Handheld PBOC Android 7 0



MSR IC NFC Gprs Payment POS Terminal Handheld PBOC Android 7 1

Company Information:

Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.



Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.



Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.



Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
