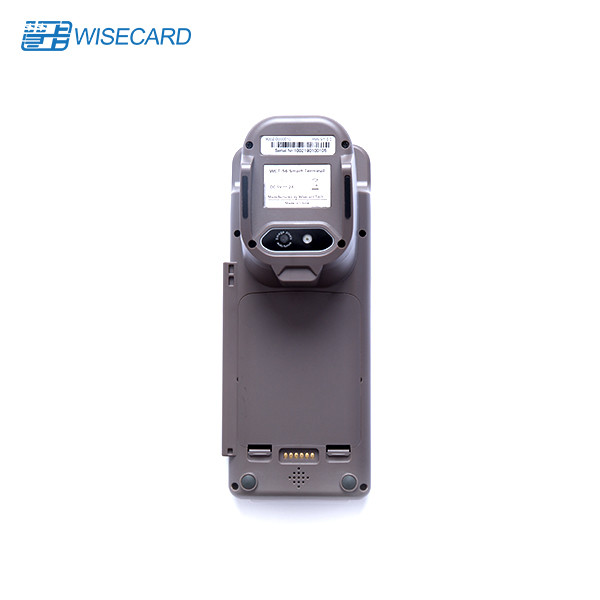

Android 7.0 Biometric POS Terminal , Portable POS Machine With Printer Built In Battery
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Paper Box | Delivery Time : | 1-4 weeks |
| Payment Terms : | T/T | Supply Ability : | 10000 units per month |
| Place of Origin: | China | Brand Name: | Wisecard |
|---|---|---|---|
| Certification: | CE Rohs | Model Number: | WCT-S6 |
|
Detail Information |
|||
| WLAN: | 2.4GHz ISM 2402MHz~2482MHz | OS: | Android 7 Or Above |
|---|---|---|---|
| VeinModule: | High Speed 1:1, 1:N | Screen: | 5.5 Inch Touch Screen |
| CardReader: | Contactless, Contact, Magstripe | Standards: | PCI EMV PBOC |
| Memory: | 1KB AES Self-Encrypted NVSRAM | Battery: | 3.7V 5800mAh |
| Highlight: | EMV PBOC Biometric POS Terminal,2.4GHz ISM Biometric POS Terminal,Contactless Biometric POS Machine |
||
Product Description
WCT-S6 is also embedded with secure element to be able to pass EMV and PCI certification. With fully loaded comm module and various verification options, it can meet various purposes and scenarios for verification and transactions. This terminal is equipped with Android 7.0 and delicate touch display to maximize the customer experience and provide more colorful application features beyond your expectation!
| WCT-T60 Android POS Configuration: | ||
| Type | Product Specification: | |
| Platform | Application Processor | MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
| RAM | 2GB LPDDR3 | |
| FLASH | 16GB EMMC | |
| OS | Android 7.0 | |
| Security Processor | MAX32555 (DeepCover Secure microcontroller) | |
| MEMORY | 60MHz Core Operating Frequency 512KB Dual-Bank Flash Memory with Cache 96KB System SRAM 1KB AES Self-Encrypted NVSRAM 256-Bit Flip-Flop-Based Battery-Backup AES Key Storage |
|
| Wireless | Wireless Standard | LTE-FDD/TDD-LTE/UMTS/HSPA/HSPA+/DC-HSPA+/EVDO/TDS-CDMA/EDGE/GPRS |
| 4G | LTE-FDD : B1/B3/B8 (TBD) | |
| TDD-LTE : B38/B39/B40/B41 | ||
| 3G | UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 | |
| TDS-CDMA : B34/B39 | ||
| EVDO : BC0 | ||
| 2G | EDGE/GPRS : B3/B8 | |
| WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
| BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
| USIM | USIM | 2 slots |
| GPS | GPS | GPS, GLONASS |
| Verification | Verification | Finger Vein Biometric Verification Module |
| LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
| LCD | 5.5 inch | |
| Touch Panel | G+F+F, Capacitive,Multi Touch. | |
| Keypad | Physical key | Power ON/OFF, Volumn up, Volumn down. |
| Virtual Keypad | Home Key, Function key, Numeric Keys. | |
| Audio | Speaker | 1 W x 1 |
| Microphone | Voice input | |
| USB | USB Standard | USB Type C 2.0 |
| Other | Charge Battery, OTG support | |
| Serial Port | RS232 | POGO PIN ON REAR CASE |
| Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
| FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. | |
| NFC | Standard | ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support ) |
| Spectrum | 13.56MHz | |
| IC card | Standard | ISO 7816 (1.8V / 3V / 5V T=0, T=1.) |
| PSAM card | PSAM | 4 slots ( compliant with ISO7816 ) |
| MSR | Standard | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
| Battery | Battery type | Li-ion polymer battery |
| Capacity | 3.7V, 5800mAh | |
| Charger | 5V/2A | |
| Backup battery | coin battery | CR2032 |
| LED indicator | Status | Triple color LED ( RED/GREEN/Orange) |
| NFC indicator | blue/yellow/green/red | |
| Certification | ICC | EMV contact L1 / PBCO L1 |
| EMV contact L2 / PBOC L2 | ||
| NFC | EMV contactless L1 / qPBOC L1 | |
| EMV contactless L2 / qPBOC L2 | ||
| Security | PCI 5.0 | |
| UPTS 2.0 | ||
| Operating environment | Temperature | -5 to +50 °C |
| Relative humidity | 10 % to 85 % RH | |
| Storage environment | Temperature | -10 to +60 °C |
| Relative humidity | 10 % to 90 % RH | |
WCT-S6 Android airtime Biometric POS with printer, android 7.0 operating system, 5.5 inch screen touch, super long standby battery capacity is 5800 mAh, thermal paper printing, 5 million pixels camera, 2g / 3g/ 4g /wifi, bluetooth communication, this fine workmanship and top quality machine is the best choice in the market.
Q: Do you offer warranty for the device?
A: Yes, we offer one year warranty& lifelong technical support
Q: What is your MOQ
A: MOQ is 2pcs
Q: What is your payment term?
A: T/T is preferred
Q: How to get software and SDK?
A: Software and SDK is free. Will share download link via drop box after you place order.
Q: Do you have POS in stock? How long you can send out the goods?
A: Yes, we have. Normally, samples within 3 working days. Bulk qty about 7 days.
Q: Can I get a sample for testing before formal order? How to get it?
A: Yes. Of course. We will arrange shipment for you through DHL as soon as we receive the payment.
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
