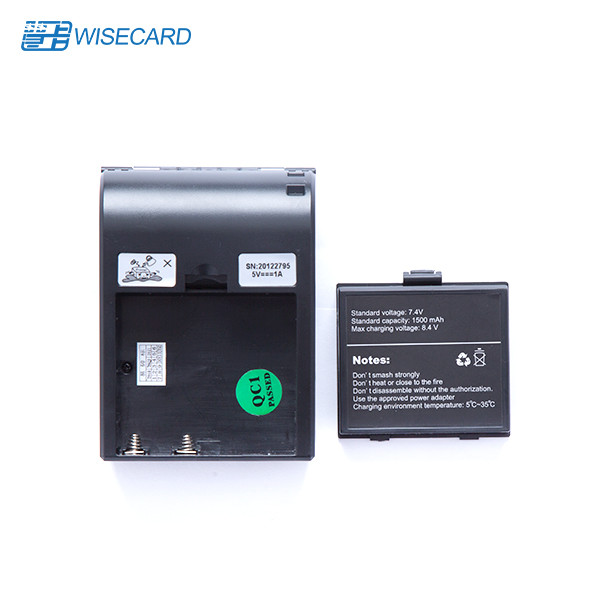

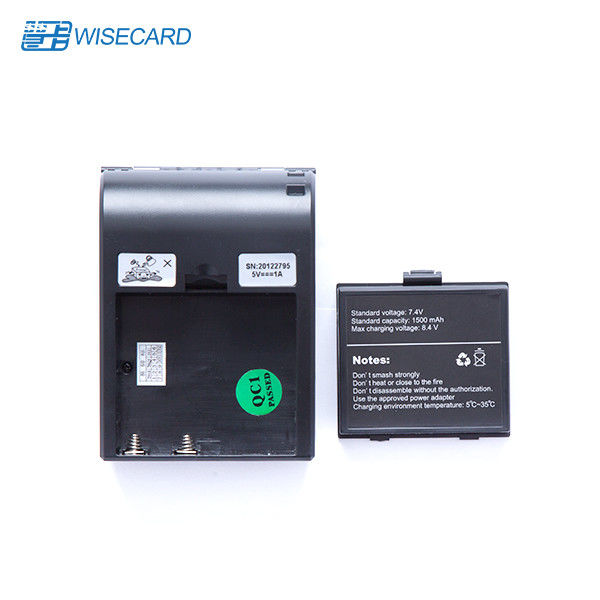

58mm Thermal Panel Printer With USB TTL RS232 Interface
Please allow me to introduce our advantages as below:
1. We are the manufacturer, which afford us deliver on time, sample order can be shipped within 2 days.
2. We have professional R&D team, we can provide OEM/ODM service to make customized products to physical.
3. Quality is most important to Qunsuo, we have 1 year guarantee to each of our prodcuts, and also we can provide prompt after-sales service.
4. We provide the most competitve wholesale price to our customers, MOQ as low as to 1pc.
5. Our products passed multiple certifications, such as CE, FCC, RoHS, IP65(IP68) and etc.
If you like our products, please contact me directly. It's sure you will get prompt reply.
| Model |
PTP-II |
| Dimension |
79*110*45mm |
| Print method |
Line thermal printer |
| Paper width |
58mm |
| print width |
48mm |
| Weight ( g) |
235 (not including the paper roll) |
| Max diameter of paper roll |
40mm |
| Dot per lie |
384 dots/line |
| internal characters |
ASCII CH(8x16,9x17,9x24,12×24); GBK(16x16,24×24) |
| Print speed |
50~80mm/s |
| Life cycle time |
50km(printing density under 12.5%)/100 million pulses |
| text and graphic Support |
English, figure, symbol, Chinese, graph, curve, icon pre-stored, barcode |
| (CODE39EAN13EAN8 CODABARCODE128CODE93ITF) |
| QR code ,PDF417 |
| Dot pitch (resolution) |
203DPI/8 dots/mm |
| interface |
IrDa/Raw-IR/wifi/bluetooth+RS232+Mini USB |
| Power |
2000mAh 7.4V rechargeable Lithium battery |
| Recharge adapter |
Stand by recharging / AC adapter |
| Self-check |
Without paper / cover open |
| Black mark test |
Supported |
| Paper feeding |
Easy paper loading |
| commands |
ESC/POS compatible with order sets |
| Paper cut |
By hands |
| operate setting |
Temperature -10°C~50°C ; Humidity 20%~85% |
| Recharge Setting |
Temperature 5°C~40°C; Humidity 20%~85% |
| Storage Setting |
Temperature -20°C~70°C ; Humidity 5%~95% |
| Standard accessories |
Long-term preservable paper, AC adapter, li-ion battery. USB cable, leather coat |
| Optional accessories |
Serial interface cable/CD |
FAQ:
1. Do you have the products in stock?
Yes, most of the items are in stock. The goods will be shipped to you within 2-3 business days after payment received. For the
products out of stock, it will take around 5-7 working days to make shipment.
2. Do you supply other POS related items?
Yes, wisecard is your 1 stop solution for Point of Sale System(Touch POS Terminal, Touch Screen Monitor, Thermal Receipt Printer,
Laser Barcode Scanner, Magnetic Card Reader, Customer Pole Display, other POS peripherals). We offer a professional service, and
custom design your Touch Screen POS System according to your requirements and budget.
3. How do I know if you ship out my order?
The tracking number (DHL, UPS, FedEx, TNT, EMS, etc.) or Air Waybill or Bill of Loading B/L by Sea will be sent to you as soon as
your goods are shipped out, we also follow up the delivery and keep you informed. The helpful after service is provided - We
support what we sell.
