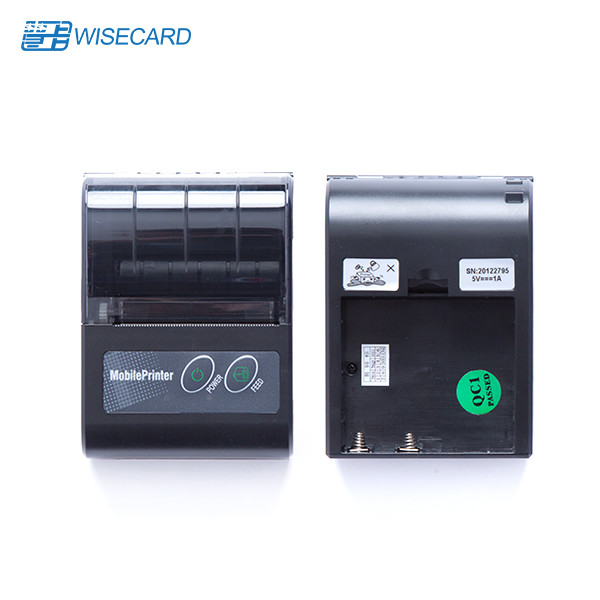

ESC/POS Impresora De Recibos Termica SDK Cashbox USB Blue Tooth 58mm Receipt Printer
Please allow me to introduce our advantages as below:
1. We are the manufacturer, which afford us deliver on time, sample order can be shipped within 2 days.
2. We have professional R&D team, we can provide OEM/ODM service to make customized products to physical.
3. Quality is most important to Qunsuo, we have 1 year guarantee to each of our prodcuts, and also we can provide prompt after-sales service.
4. We provide the most competitve wholesale price to our customers, MOQ as low as to 1pc.
5. Our products passed multiple certifications, such as CE, FCC, RoHS, IP65(IP68) and etc.
If you like our products, please contact me directly. It's sure you will get prompt reply.
| Model |
PTP-II |
| Dimension |
79*110*45mm |
| Print method |
Line thermal printer |
| Paper width |
58mm |
| print width |
48mm |
| Weight ( g) |
235 (not including the paper roll) |
| Max diameter of paper roll |
40mm |
| Dot per lie |
384 dots/line |
| internal characters |
ASCII CH(8x16,9x17,9x24,12×24); GBK(16x16,24×24) |
| Print speed |
50~80mm/s |
| Life cycle time |
50km(printing density under 12.5%)/100 million pulses |
| text and graphic Support |
English, figure, symbol, Chinese, graph, curve, icon pre-stored, barcode |
| (CODE39EAN13EAN8 CODABARCODE128CODE93ITF) |
| QR code ,PDF417 |
| Dot pitch (resolution) |
203DPI/8 dots/mm |
| interface |
IrDa/Raw-IR/wifi/bluetooth+RS232+Mini USB |
| Power |
2000mAh 7.4V rechargeable Lithium battery |
| Recharge adapter |
Stand by recharging / AC adapter |
| Self-check |
Without paper / cover open |
| Black mark test |
Supported |
| Paper feeding |
Easy paper loading |
| commands |
ESC/POS compatible with order sets |
| Paper cut |
By hands |
| operate setting |
Temperature -10°C~50°C ; Humidity 20%~85% |
| Recharge Setting |
Temperature 5°C~40°C; Humidity 20%~85% |
| Storage Setting |
Temperature -20°C~70°C ; Humidity 5%~95% |
| Standard accessories |
Long-term preservable paper, AC adapter, li-ion battery. USB cable, leather coat |
| Optional accessories |
Serial interface cable/CD |
FAQ:
1. Q: Are you a manufacturer?
A: Yes. Our company head office and factory are both in Shanghai.
2. Q: Can you provide application software for the hardware?
A: We provide free SDK with API and demo to support your development or programming.
3. Q: What is the warranty?
A: The warranty time is 1 year without man-made damage.
4. Q: Does the device have the language default as English?
A: Of course, our device supports multi-language such as English, Spanish, Portuguese, French, German, Polish, Japanese, Russian and so on.
5. Q: Can your device install the Android Apps that our customers provide?
A: No problem. Just send us your Apps which you need to get the license of the apps and then our Engineers can do that for you.
If you have further question about our products, please don’t hesitate to contact us, we will be happy to serve you.
