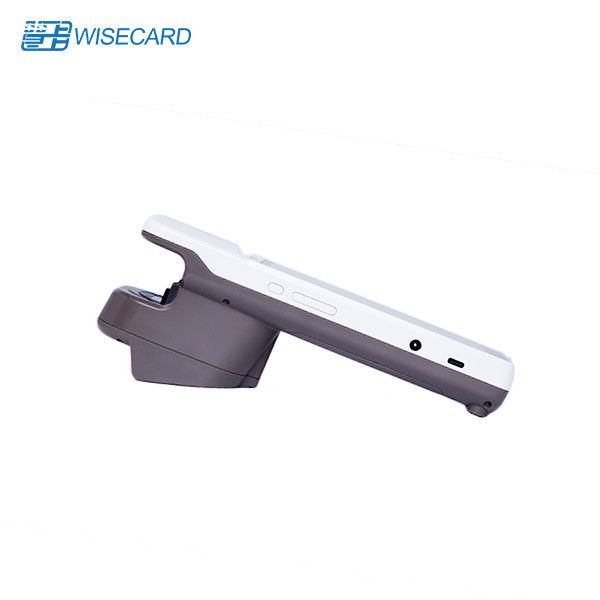

Big Battery Big Memory High Secure POS Terminal WCT-S6 dual cameras
WCT-S6 is a smart POS with quad core processor, supports chip, magstrip and NFC three reading methods. It is the first smart POS with digital vien module.
WCT-S6 with 5800mAh big battery which supports longer working hours and standby time. Which provides the customer a much better using experience.
Last but not least, it supports customized which provides the customer more option to define their favorite POS.
| WCT-S6FO Android POS Configuration: |
| Type |
Product Spec |
| Platform |
Processor |
MTK MT8735 (4-Core ARM Cortex-A53,1.3GHz) |
| RAM |
1GB / 2GB LPDDR3 |
| FLASH |
8GB / 16GB EMMC, TF Card Supported |
| OS |
Android 7.0 Security Payment OS |
| Security Processor |
MAXIM MAX32555 (Deep-Cover Secure microcontroller) |
| Wireless |
Wireless Standard |
LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
| 4G |
LTE-FDD: B1/B3/B8 (TBD) |
| TDD-LTE: B38/B39/B40/B41 |
| 3G |
UMTS/HSPA/HSPA+/DC-HSPA+: B1/B8 |
| TDS-CDM: B34/B39 |
| EVDO: BC0 |
| 2G |
EDGE/GPRS: B3/B8 |
| WLAN |
2.4GHz ISM 2402MHz~2482MHz |
| BT 4.1 LE |
2.4GHz ISM 2402MHz~2480MHz |
| USIM |
Card Slots |
4 PSAM slots, 2 SIM slots |
| GPS |
GPS |
GPS, GLONASS |
| LCD and Touch Panel |
LCD Pixels |
720*1280 IPS |
| LCD |
5.5 inch |
| Touch Panel |
G+F+F, Capacitive Color Touch, Multi Touch, signature capable, video capable |
| Keypad |
Physical key |
Power ON/OFF, Volume up, Volume down. |
| Virtual Keypad |
Home Key, Function key, Numeric Keys. |
| Audio |
Speaker |
1 W x 1 |
| Microphone |
Voice input |
| USB |
USB Standard |
USB Type C 2.0 |
| Other |
Charge Battery, OTG support |
| Camera |
REAR |
8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
| FRONT |
2Mega Pixels, CMOS, JPEG picture, Video. |
| NFC |
Standard |
ISO14443 type A/B (ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support) |
| Spectrum |
13.56MHz |
| IC card |
Contactless Card |
NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
| EMV card |
Smart Card |
EMV & PBOC Compliant |
| MSR |
Magnetic Card |
ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
| Battery |
Battery type |
Li-ion polymer battery |
| Capacity |
3.7V, 5800mAh |
| Charger |
5V/2A |
| Certification |
ICC |
EMV contact L1 / PBCO L1 |
| EMV contact L2 / PBOC L2 |
| NFC |
EMV contactless L1 / qPBOC L1 |
| EMV contactless L2 / qPBOC L2 |
| Security |
PCI 5.0 |
| UPTS 2.0 |
| Operating environment |
Temperature |
-5 to +50 °C |
| Relative humidity |
10 % to 85 % RH |
| Storage environment |
Temperature |
-10 to +60 °C |
| Relative humidity |
10 % to 90 % RH |
| Size and Weigt |
Dimension and Weight |
210mm*85mm*53mm, 480g with battery |
| Micro Printer |
Printing method |
Thermal-line dot method |
| Paper |
Thermal roll paper (standard) 57*40 mm |
| Effective Printing area |
48mm |
| Speed |
Maximum 70mm/sec(480 dot line/sec) |
| Printing resolutions |
8 dots/mm |
| Character |
12*24dots and 24*48 dots |
| Number of columns |
32columns/line |
| Printing head life |
Pulse resistance:100 million pulses/dot (under our standard conditions); |
|
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)
|
Trade condition
1. Payment Terms: T/T LC, Western Union, Money Gram, Paypal, etc...
2. Sample Lead Time: 2-4days when there is stockand57ays for custom design or logo adding.
3. Mass Production Lead Time: 20-25days, and 30-35days for custom design.
4. Shipping Port: Shenzhen, China. We can manage shipment from the beginning to the end for you.
5.Door to door service: We have good channels by DHL/UPS/FEDEX/TNT as options for you.
Quality guarantee:
1. All our products have one year guarantee from the shipping date
2. Under Guarantee: if any non-human damage happen, we’ll offer free pairing or replacement, including delivery cost
3. Out of guarantee: we offer repairing pats at lower cost, and service free in charge.
Custom design is welcome :
Customized projects accepted including software and hardware.
Don't hesitate to share your idea with us, we have experienced engineer team and always do our best to help client's project.
