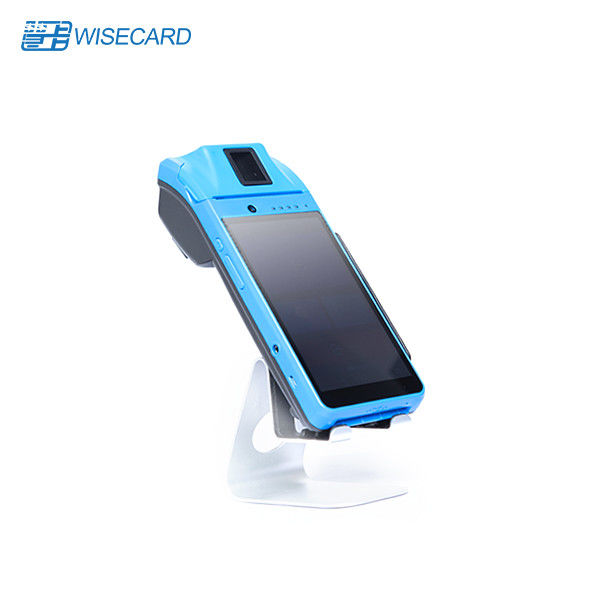

4 PSAM Biometric POS Terminal Vein Module TDS CDMA With Card Reader

Name: 4 PSAM Biometric POS Terminal Vein Module TDS CDMA With Card Reader
Brand: Wisecard Technology Co., Ltd.
SKU: T90-FO
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Wisecard

Certification: PCI CE Rohs

Model Number: T90-FO

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: 1 pc per box, 10 pc per carton

Delivery Time: 1-4 weeks

Payment Terms: T/T

Supply Ability: 10000 Set/Sets per Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              4 PSAM Biometric POS Terminal, Biometric POS Terminal Vein Module, TDS CDMA Desktop Pos Terminal


Printer:	Thermal Printer Inbedded	Battery Type:	Li-ion Polymer Battery
RAM:	1GB / 2GB LPDDR3	FLASH:	8GB / 16GB EMMC
Verification:	Finger Vein Biometric Verification Module	Security Processor:	MAXIM MAX32555 (DeepCover Secure Microcontroller)
USIM Card Slots:	4 PSAM Slots, 2 SIM Slots	WLAN:	2.4GHz ISM 2402MHz~2482MHz

Printer:	Thermal Printer Inbedded
Battery Type:	Li-ion Polymer Battery
RAM:	1GB / 2GB LPDDR3
FLASH:	8GB / 16GB EMMC
Verification:	Finger Vein Biometric Verification Module
Security Processor:	MAXIM MAX32555 (DeepCover Secure Microcontroller)
USIM Card Slots:	4 PSAM Slots, 2 SIM Slots
WLAN:	2.4GHz ISM 2402MHz~2482MHz

Description

4 PSAM Biometric POS Terminal Vein Module TDS CDMA With Card Reader

Vein Module Biometric POS Termianl With Card Reader Desktop Pos With Printer

WCT Android POS Configuration
Type		Product Spec
Platform	Processor	MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
	RAM	1GB / 2GB LPDDR3
	FLASH	8GB / 16GB EMMC
	OS	Android 7.0 Security Payment OS
	Security Processor	MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless	Wireless Standard	LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
	4G	LTE-FDD : B1/B3/B8 (TBD)
	4G	TDD-LTE : B38/B39/B40/B41
	3G	UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
		TDS-CDMA : B34/B39
		EVDO : BC0
	2G	EDGE/GPRS : B3/B8
	WLAN	2.4GHz ISM 2402MHz~2482MHz
	BT 4.1 LE	2.4GHz ISM 2402MHz~2480MHz
USIM	Card Slots	4 PSAM slots, 2 SIM slots
GPS	GPS	GPS, GLONASS
LCD and Touch Panel	LCD Pixels	720*1280 IPS
	LCD	5.5 inch
	Touch Panel	G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad	Physical key	Power ON/OFF, Volumn up, Volumn down.
Keypad	Virtual Keypad	Home Key, Function key, Numeric Keys.
Audio	Speaker	1 W x 1
Audio	Microphone	Voice input
USB	USB Standard	USB Type C 2.0
USB	Other	Charge Battery, OTG support
Camera	REAR	8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
Camera	FRONT	2Mega Pixels, CMOS, JPEG picture, Video.
NFC	Standard	ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
NFC	Spectrum	13.56MHz
IC card	Contactless Card	NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card	Smart Card	EMV & PBOC Compliant
MSR	Magnetic Card	ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery	Battery type	Li-ion polymer battery
	Capacity	3.7V, 5800mAh
	Charger	5V/2A
Certification	ICC	EMV contact L1 / PBCO L1
	ICC	EMV contact L2 / PBOC L2
	NFC	EMV contactless L1 / qPBOC L1
	NFC	EMV contactless L2 / qPBOC L2
	Security	PCI 5.0
	Security	UPTS 2.0
Operating environment	Temperature	-5 to +50 °C
Operating environment	Relative humidity	10 % to 85 % RH
Storage environment	Temperature	-10 to +60 °C
Storage environment	Relative humidity	10 % to 90 % RH
Size and Weigt	Dimension and Weight	203mm85mm53mm, 480g with battery
Micro Printer	Printing method	Thermal-line dot method
	Paper	Thermal roll paper (standard) 57*40 mm
	Effective Printing area	48mm
	Speed	Maximum 70mm/sec(480 dot line/sec)
	Printing resolutions	8 dots/mm
	Character	1224dots and 2448 dots
	Number of columns	32columns/line
	Printing head life	Pulse resistance:100 million pulses/dot (under our standard conditions);
	Printing head life	Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)
