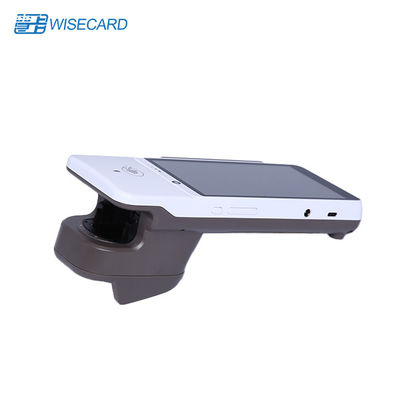

WIFI Handheld Smart POS Terminal With NFC Reader Loyalty Program System
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsAPP : +8613424312532
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | 1 pc per box, 10 pc per carton | Delivery Time : | 1-4 weeks |
| Payment Terms : | T/T | Supply Ability : | 10000 Set/Sets per Month |
| Place of Origin: | China | Brand Name: | Wisecard |
|---|---|---|---|
| Certification: | PCI CE Rohs | Model Number: | WCT-S6 |
|
Detail Information |
|||
| Battery Capacity: | 3.7V, 5800mAh | PSAM Card Slot: | 4 Slots |
|---|---|---|---|
| Printer: | Thermal Printer Inbedded | Front Camera: | 2M Pixel |
| GPS: | GPS, GLONASS | Security: | PCI 5.0, UPTS 2.0 |
| REAR Camera: | 8Mega Pixels, CMOS, AF, QR/2D Barcode, JPEG Picture, Video. | Touch Panel: | G+F+F, Capacitive,Multi Touch. |
| Highlight: | UPTS 2.0 Mobile Card Payment Terminal,EDGE GPRS Mobile Card Payment Terminal,TDS CDMA 4G Pos Terminal |
||
Product Description
WCT-S6 is a smart POS with quad core processor, supports chip, magstrip and NFC three reading methods. It is the first smart POS with digital vien module.
specification:
| WCT-S6FO Android POS Configuration: | ||
| Type | Product Spec | |
| Platform | Processor | MTK MT8735 (4-Core ARM Cortex-A53,1.3GHz) |
| RAM | 1GB / 2GB LPDDR3 | |
| FLASH | 8GB / 16GB EMMC, TF Card Supported | |
| OS | Android 7.0 Security Payment OS | |
| Security Processor | MAXIM MAX32555 (Deep-Cover Secure microcontroller) | |
| Wireless | Wireless Standard | LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
| 4G | LTE-FDD: B1/B3/B8 (TBD) | |
| TDD-LTE: B38/B39/B40/B41 | ||
| 3G | UMTS/HSPA/HSPA+/DC-HSPA+: B1/B8 | |
| TDS-CDM: B34/B39 | ||
| EVDO: BC0 | ||
| 2G | EDGE/GPRS: B3/B8 | |
| WLAN | 2.4GHz ISM 2402MHz~2482MHz | |
| BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz | |
| USIM | Card Slots | 4 PSAM slots, 2 SIM slots |
| GPS | GPS | GPS, GLONASS |
| LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
| LCD | 5.5 inch | |
| Touch Panel | G+F+F, Capacitive Color Touch, Multi Touch, signature capable, video capable | |
| Keypad | Physical key | Power ON/OFF, Volume up, Volume down. |
| Virtual Keypad | Home Key, Function key, Numeric Keys. | |
| Audio | Speaker | 1 W x 1 |
| Microphone | Voice input | |
| USB | USB Standard | USB Type C 2.0 |
| Other | Charge Battery, OTG support | |
| Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
| FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. | |
| NFC | Standard | ISO14443 type A/B (ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support) |
| Spectrum | 13.56MHz | |
| IC card | Contactless Card | NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816 |
| EMV card | Smart Card | EMV & PBOC Compliant |
| MSR | Magnetic Card | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec. |
| Battery | Battery type | Li-ion polymer battery |
| Capacity | 3.7V, 5800mAh | |
| Charger | 5V/2A | |
| Certification | ICC | EMV contact L1 / PBCO L1 |
| EMV contact L2 / PBOC L2 | ||
| NFC | EMV contactless L1 / qPBOC L1 | |
| EMV contactless L2 / qPBOC L2 | ||
| Security | PCI 5.0 | |
| UPTS 2.0 | ||
| Operating environment | Temperature | -5 to +50 °C |
| Relative humidity | 10 % to 85 % RH | |
| Storage environment | Temperature | -10 to +60 °C |
| Relative humidity | 10 % to 90 % RH | |
| Size and Weigt | Dimension and Weight | 210mm*85mm*53mm, 480g with battery |
| Micro Printer | Printing method | Thermal-line dot method |
| Paper | Thermal roll paper (standard) 57*40 mm | |
| Effective Printing area | 48mm | |
| Speed | Maximum 70mm/sec(480 dot line/sec) | |
| Printing resolutions | 8 dots/mm | |
| Character | 12*24dots and 24*48 dots | |
| Number of columns | 32columns/line | |
| Printing head life | Pulse resistance:100 million pulses/dot (under our standard conditions); | |
| Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) | ||
Trade condition
1. Payment Terms: T/T LC, Western Union, Money Gram, Paypal, etc...
2. Sample Lead Time: 2-4days when there is stockand57ays for custom design or logo adding.
3. Mass Production Lead Time: 20-25days, and 30-35days for custom design.
4. Shipping Port: Shenzhen, China. We can manage shipment from the beginning to the end for you.
5.Door to door service: We have good channels by DHL/UPS/FEDEX/TNT as options for you.
Quality guarantee:
1. All our products have one year guarantee from the shipping date
2. Under Guarantee: if any non-human damage happen, we’ll offer free pairing or replacement, including delivery cost
3. Out of guarantee: we offer repairing pats at lower cost, and service free in charge.
Custom design is welcome :
Customized projects accepted including software and hardware.
Don't hesitate to share your idea with us, we have experienced engineer team and always do our best to help client's project.
