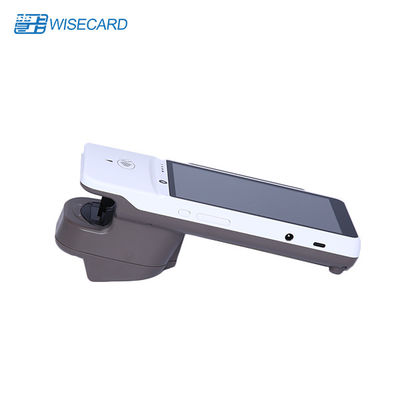

TDS CDM 4 Slots Smart POS Terminal 16GB EMMC With Vein Blood Detector

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: Wisecard
Certification: PCI CE Rohs Model Number: WCT-S6

Detail Information

Battery Capacity: 3.7V, 5800mAh PSAM Card Slot: 4 Slots
Printer: Thermal Printer Inbedded Front Camera: 2M Pixel
GPS: GPS, GLONASS Security: PCI 5.0, UPTS 2.0
REAR Camera: 8Mega Pixels, CMOS, AF, QR/2D Barcode, JPEG Picture, Video. Touch Panel: G+F+F, Capacitive,Multi Touch.
High Light:

TDS CDM Smart POS Terminal

,

4 Slots Smart POS Terminal

,

16GB EMMC Card Payment Terminal

Product Description

5.5 Inch Handheld POS Android POS Terminal With Vein Blood Detector



WCT-S6 with 5800mAh big battery which supports longer working hours and standby time. Which provides the customer a much better using experience.

Last but not least, it supports customized which provides the customer more option to define their favorite POS.



Secification:

WCT-S6FO Android POS Configuration:
Type Product Spec
Platform Processor MTK MT8735 (4-Core ARM Cortex-A53,1.3GHz)
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC, TF Card Supported
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (Deep-Cover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD: B1/B3/B8 (TBD)
TDD-LTE: B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+: B1/B8
TDS-CDM: B34/B39
EVDO: BC0
2G EDGE/GPRS: B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch, Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volume up, Volume down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B (ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support)
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 210mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)



Why choose us?



We currently provide OEM/ODM services for many customers worldwide, building, proof of concepts, designs and large orders is our strength.





Many of our current products are available in a very fast manner in order for you to test and approve of our strong quality of goods. Don’t be fooled by some factories that will offer the best products below the market price, you pay for what you get is the safe way to look at your over sea’s purchases.



we offer quality services from the ideas to proof of concept and finally to sample prototypes, this gives us experience and a wide range of intelligent displays product knowledge.



Our years experiences made us faster and better, our teams are truly specialized, from our purchasing department to our factory workers, everyone is key to our success. Our sales teams are composed of many nationalities, some from foreign markets with years of experience. This gives us the best communication skills in the industry. Our English and world market knowledge is another reason why choosing us makes only sense.
