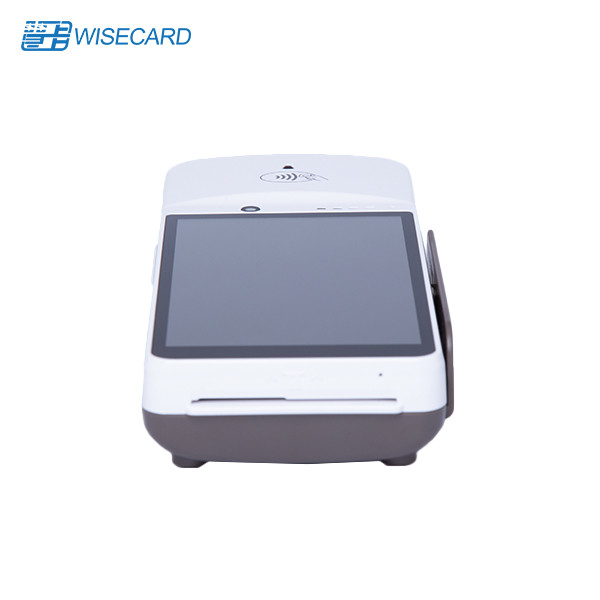

TDS CDMA CMOS NFC Portable Pos Terminal Vein Detector Mobile POS Terminal

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: Wisecard
Certification: PCI CE Rohs Model Number: WCT-S6

Detail Information

Battery Capacity: 3.7V, 5800mAh PSAM Card Slot: 4 Slots
Printer: Thermal Printer Inbedded Front Camera: 2M Pixel
GPS: GPS, GLONASS Security: PCI 5.0, UPTS 2.0
REAR Camera: 8Mega Pixels, CMOS, AF, QR/2D Barcode, JPEG Picture, Video. Touch Panel: G+F+F, Capacitive,Multi Touch.
High Light:

CMOS NFC Portable Pos Terminal

,

TDS CDMA Portable Pos Terminal

,

Vein Detector Mobile POS Terminal

Product Description

NFC 4G Portable Pos Systems Vein Detector Handheld Android Mobile POS Pos Terminal



WCT-S6 with 5800mAh big battery which supports longer working hours and standby time. Which provides the customer a much better using experience.

Last but not least, it supports customized which provides the customer more option to define their favorite POS.



Secification:

WCT-S6FO Android POS Configuration:
Type Product Spec
Platform Processor MTK MT8735 (4-Core ARM Cortex-A53,1.3GHz)
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC, TF Card Supported
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (Deep-Cover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD: B1/B3/B8 (TBD)
TDD-LTE: B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+: B1/B8
TDS-CDM: B34/B39
EVDO: BC0
2G EDGE/GPRS: B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch, Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volume up, Volume down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B (ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support)
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 210mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)



FAQ:

Q: Does your stand secured?

A: Yes, our products are durable metal construction. We have styles with key lock and with screw locked. Please see our brochure for more details.

Q: Would it be possible to order a sample of products?

A: Yes, definitely no problem to order one sample at first before bulk order.

Q: I would like to order custom tablet stand. Do you manufacture custom design tablet stand?

A: Yes, we have strong R&D center who can custom creative design for you. Please offer us your requirements.

Q: Is it possible to have our logo printed on top of it?

A: Yes, it is no problem to print logo on top of the tablet enclosure. Please offer us the logo picture and offer us international Pan-tone color code for the logo color.

Q: Are you a manufacturer?

A: Yes, we have our own factory with advanced facilities.
