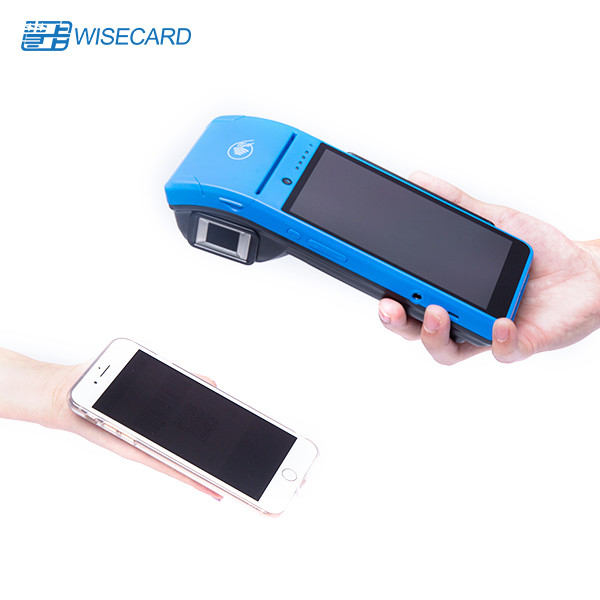

PBCO L1 5800mAh Handheld PDA Machines DC HSPA With Printer

Large Image : PBCO L1 5800mAh Handheld PDA Machines DC HSPA With Printer

Product Details:

Place of Origin:	China
Brand Name:	Wisecard
Certification:	PCI CE Rohs
Model Number:	T90FA

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	1 pc per box, 10 pc per carton
Delivery Time:	1-4 weeks
Payment Terms:	T/T
Supply Ability:	10000 Set/Sets per Month

Contact Now

Detailed Product Description

Processor:	4 Core ARM Cortex-A53	OS:	Android 7 Or Above
Screen:	5.5 Inch Touch Screen	Fingerprint:	Aratek, FBI Certified
Battery:	7.4V 5800mAh	Printer:	Thermal Printer Inbedded
Rear Camera:	8M Pixel	Communication:	2G / 3G / 4G / Wifi, Bluetooth
Highlight:	PBCO L1 Handheld PDA Machines , 5800mAh Handheld PDA Machines , DC HSPA Touch Screen POS Terminal

Handheld Mobile Android POS Terminal GPRS Full Code Scanning Pos

WCT-S8 Android POS Configuration
Type		Product Spec
Platform	Processor	MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
	RAM	1GB / 2GB LPDDR3
	FLASH	8GB / 16GB EMMC, TF Card Supported
	OS	Android 7.0 Security Payment OS
	Security Processor	MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless	Wireless Standard	LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
	4G	LTE-FDD : B1/B3/B8 (TBD)
	4G	TDD-LTE : B38/B39/B40/B41
	3G	UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
		TDS-CDMA : B34/B39
		EVDO : BC0
	2G	EDGE/GPRS : B3/B8
	WLAN	2.4GHz ISM 2402MHz~2482MHz
	BT 4.1 LE	2.4GHz ISM 2402MHz~2480MHz
USIM	Card Slots	4 PSAM slots, 2 SIM slots
GPS	GPS	GPS, GLONASS
LCD and Touch Panel	LCD Pixels	720*1280 IPS
	LCD	5.5 inch
	Touch Panel	G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad	Physical key	Power ON/OFF, Volumn up, Volumn down.
Keypad	Virtual Keypad	Home Key, Function key, Numeric Keys.
Audio	Speaker	1 W x 1
Audio	Microphone	Voice input
USB	USB Standard	USB Type C 2.0
USB	Other	Charge Battery, OTG support
Camera	REAR	8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
Camera	FRONT	NA
NFC	Standard	ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
NFC	Spectrum	13.56MHz
IC card	Contactless Card	NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card	Smart Card	EMV & PBOC Compliant
MSR	Magnetic Card	ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery	Battery type	Li-ion polymer battery
	Capacity	3.7V, 5800mAh
	Charger	5V/2A
Certification	ICC	EMV contact L1 / PBCO L1
	ICC	EMV contact L2 / PBOC L2
	NFC	EMV contactless L1 / qPBOC L1
	NFC	EMV contactless L2 / qPBOC L2
	Security	PCI 5.0
	Security	UPTS 2.0
Operating environment	Temperature	-5 to +50 °C
Operating environment	Relative humidity	10 % to 85 % RH
Storage environment	Temperature	-10 to +60 °C
Storage environment	Relative humidity	10 % to 90 % RH
Size and Weigt	Dimension and Weight	210mm85mm53mm, 480g with battery
Micro Printer	Printing method	Thermal-line dot method
	Paper	Thermal roll paper (standard) 57*40 mm
	Effective Printing area	48mm
	Speed	Maximum 70mm/sec(480 dot line/sec)
	Printing resolutions	8 dots/mm
	Character	1224dots and 2448 dots
	Number of columns	32columns/line
	Printing head life	Pulse resistance:100 million pulses/dot (under our standard conditions);
	Printing head life	Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)
