DC HSPA Handheld Pos Terminal TDS CDMA Wireless 4G 8 Mega Pixels

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: Wisecard
Certification: PCI CE Rohs Model Number: S8

Detail Information

Processor: MTK MT8735 USIM Card Slots: 4 PSAM Slots, 2 SIM Slots
Name: Mobile Card Payment Wireless 4G Android Handheld Pos Terminal With 80mm Printer Physical Key: Power ON/OFF, Volumn Up, Volumn Down.
Virtual Keypad: Home Key, Function Key, Numeric Keys REAR Camera: 8 Mega Pixels, CMOS, AF, QR/2D Barcode, JPEG Picture, Video.
NFC Standard: ISO14443 Type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa Support ) NFC Spectrum: 13.56MHz
High Light:

DC HSPA Handheld Pos Terminal

,

Handheld Pos Terminal TDS CDMA

,

8 Mega Pixels Mobile Pos Terminal

Product Description

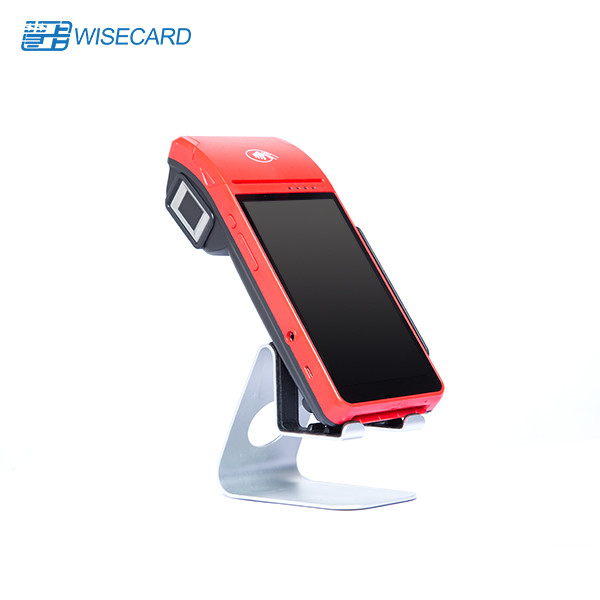

Mobile Card Payment Wireless 4G Android Handheld Pos Terminal With 80mm Printer



★ Fashionable Appearance and Friendly UI

Small size with big screen

Fashionable line and elegant appearance

Ergonomic and integrity design study

Along with friendly customize UI



★ Excellent Performance

High Performance CPU, 4 core processors

Supporting 4G communication model

High volume lithium battery, satisfies intensive payment transaction requests.



★ Various Payment Models Support

Support magnetic strip card, financial IC card and various contactless cards

Embodied with 1D&2D barcode scanner





WCT-S8 Android POS Configuration
Type Product Spec
Platform Processor MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 203mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)



FAQ:

1. How do we proceed an order?
It is much appreciated if you could tell us your exact requirements/specification then we will send a proforma invoice for you to make payment. Payment via Western Union, Paypal or T/T. Samples will be ready after full payment received. For bulk order, we require 50% deposit in advance, pay the 50% balance before shipping.

2. What do you offer?
Wisecard supply both hardware and software of POS system. We have POS terminals with Linux, WinCE, Android and other systems, wireless printer, signature pad, keypad/pin-pad, POS accessories, etc.

3. How to do the freight calculation?
Shipment charges are calculated according to the higher of actual or volumetric weight and any shipment may be re-weighed and re-measured by the carrier to confirm this calculation.

4. Do you have warranty? Can you give warranty of your products?
Yes, we have warranty of 1 year period.
we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with products' quality or service.
