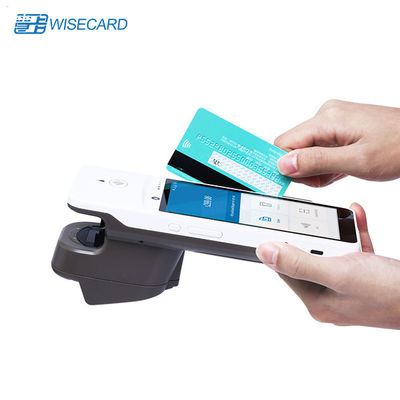

TDS CDM 5800mAh Biometric Android Pos Terminal Vein Module Payment System

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: Wisecard
Certification: PCI CE Rohs Model Number: S6

Detail Information

Name: Vein Module Biometric Pos Terminal With Cheap Price Payment System Battery Capacity: 3.7V, 5800mAh
Printer: Thermal Printer Inbedded Front Camera: 2M Pixel
Communication: 4G/3G/2G/WIFI/Bluetooth Color: White
REAR Camera: 8Mega Pixels, CMOS, AF, QR/2D Barcode, JPEG Picture, Video. NFC Standard: ISO14443 Type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa Support
High Light:

Biometric Android Pos Terminal

,

TDS CDM Android Pos Terminal

,

Vein Module Android POS Machine

Product Description

Vein Module Biometric Pos Terminal With Cheap Price Payment System

5 Unique Selling Propositions

1. 5.5" HD full touch screen, making every operation agile and smooth



2. Crafted by international design masters, thin and light body, can be held with one hand,easy to carry



3. HD dual-camera: 5MP camera + professional barcode scanner, makingevery scan worry-free



4. Selected high-speed printer, better performance of receipt printing



5. Bi-colored injection molding, compression resistant and shock-proof, handling unexpected situations such as equipment falling










WCT-S6FO Android POS Configuration:
Type Product Spec
Platform Processor MTK MT8735 (4-Core ARM Cortex-A53,1.3GHz)
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC, TF Card Supported
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (Deep-Cover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD: B1/B3/B8 (TBD)
TDD-LTE: B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+: B1/B8
TDS-CDM: B34/B39
EVDO: BC0
2G EDGE/GPRS: B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch, Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volume up, Volume down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B (ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support)
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 210mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);

Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)





FAQ



1. Q: Are you a manufacturer?

A: Yes. Our company head office and factory are both in Shanghai.



2. Q: Can you provide application software for the hardware?

A: We provide free SDK with API and demo to support your development or programming.



3. What about the minimum order quantity?

Our MOQ is 2 sets.



4.Is sample order available? Are they free?

Yes, trial order or sample order is welcome, but sample fee is not for free.



5.Can I customize my product according to my configuration or specification?

Yes, we provide OEM service and customers can customize products according to thier drawing or specification.



6.Whether the price is reasonable and competitive?

Our quotation is factory direct price.



If you have further question about our products, please don’t hesitate to contact us, we will be happy to serve you.

TDS CDM 5800mAh Biometric Android Pos Terminal Vein Module Payment System 0

TDS CDM 5800mAh Biometric Android Pos Terminal Vein Module Payment System 1

TDS CDM 5800mAh Biometric Android Pos Terminal Vein Module Payment System 2



Company Information:

Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.



Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.



Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.



Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.

TDS CDM 5800mAh Biometric Android Pos Terminal Vein Module Payment System 3
