2M Pixel UMTS NFC Biometric Pos Machine With Vein Module Poyment System

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: Wisecard
Certification: PCI CE Rohs Model Number: S6

Detail Information

Name: Handheld Billing Biometric Pos Machine With Vein Module Poyment System Battery Capacity: 3.7V, 5800mAh
Printer: Thermal Printer Inbedded Front Camera: 2M Pixel
Communication: 4G/3G/2G/WIFI/Bluetooth REAR Camera: 8Mega Pixels, CMOS, AF, QR/2D Barcode, JPEG Picture, Video.
NFC Standard: ISO14443 Type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa Support
High Light:

UMTS NFC Biometric Pos Machine

,

2M Pixel Biometric Pos Machine

,

Vein Module Handheld Pos Machine

Product Description

NFC Handheld Billing Pos Machine Module Biometric Pos



Wireless verification Terminal

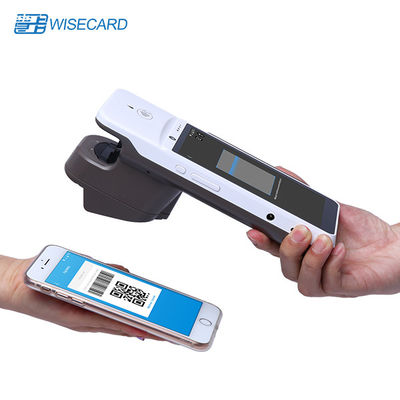

WCT-S6 is a four core Android OS smart POS terminal with differentiating security method of latest finger vein module which makes it bring you highest security level.



WCT-S6 is a powerful terminal with ID, vein and facial recognition modules, which enables us to integrate with Security Access, ID verification, MOC purpose. This terminal is targeted to verification and payment industry.



WCT-S6 is also embedded with secure element to be able to pass EMV and PCI certification. With fully loaded comm module and various verification options, it can meet various purposes and scenarios for verification and transactions. This terminal is equipped with Android 7.0 and delicate touch display to maximize the customer experience and provide more colorful application features beyond your expectation!







WCT-S6FO Android POS Configuration:
Type Product Spec
Platform Processor MTK MT8735 (4-Core ARM Cortex-A53,1.3GHz)
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC, TF Card Supported
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (Deep-Cover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD: B1/B3/B8 (TBD)
TDD-LTE: B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+: B1/B8
TDS-CDM: B34/B39
EVDO: BC0
2G EDGE/GPRS: B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch, Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volume up, Volume down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B (ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support)
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 210mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);

Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)



FAQ:

1, Do you have the items in stock?

The most of products are in stock. We can send the goods out within 3days after payment received. For the goods are out of stock, production time is about 7-10 days.



2, Do you offer other relevant items?

Yes, we do. We are offering PDA data collector, POS system, barcode scanner, label printer and label rewinder and so on.



3, If the goods are damaged badly, who is responsible for it?

We will be responsible for the damaged goods when it is damaged during transport, and we can exchange the new goods for you.



4, Can you make OEM or ODM for products?

OEM and ODM products is available for customer, as long as customer meet the MOQ. Also we have engineers for logo and products design for customers.



5, What about delivery time?

Samples and small order within 5 working days; bulk order delivery kindly check with seller.



6, What about MOQ?

For pos terminal, we can accept sample order firstly, so there is not limit for MOQ. For label paper/receipt paper ect.



7, Besides the English language, do your printers support other languages? what operation system they backup?

Yes, our printer not only supports English language, but also Russian, Spanish, Portuguese ect. 48 different languages available, and it backups IOS, Android, Windows, Linux, Opos operation systems.



8, What warranty and after-sale service do you offer?

Each POS terminal will have one year (12 months) warranty. Free components will be offered for repair in warranty period, if the issue caused by non-artificial damages.



2M Pixel UMTS NFC Biometric Pos Machine With Vein Module Poyment System 0

2M Pixel UMTS NFC Biometric Pos Machine With Vein Module Poyment System 1

2M Pixel UMTS NFC Biometric Pos Machine With Vein Module Poyment System 2



Company Information:

Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.



Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.



Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.



Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.

2M Pixel UMTS NFC Biometric Pos Machine With Vein Module Poyment System 3
