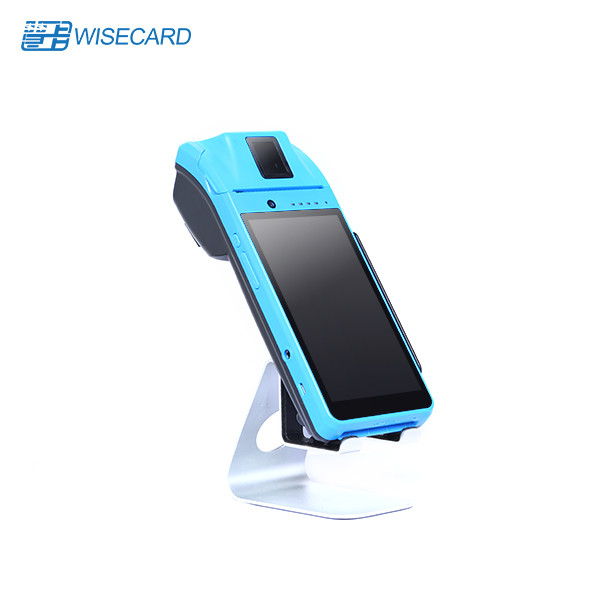

PTS PCI Smart POS Terminal 7 Inch DC HSPA CDMA TDS With 58mm Printer

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: Wisecard
Certification: PCI CE Rohs Model Number: T90FO

Detail Information

Processor: 4 Core ARM Cortex-A53 OS: Android 7 Or Above
Screen: 5.5 Inch Touch Screen Fingerprint: Aratek, FBI Certified
Battery: 7.4V5800mAh Printer: Thermal Printer Inbedded
Rear Camera: 8M Pixel Communication: 2G / 3G / 4G / Wifi, Bluetooth
High Light:

PCI PTS Smart POS Terminal

,

HSPA CDMA Smart POS Terminal

,

TDS CDMA Android Payment Terminal

Product Description

PTS PCI Android POS Terminal 7 Inch DC HSPA CDMA TDS With 58mm Printer Optical Fingerprint Module



PCI PTS 5.1Certified, EMV Certified

Android 7.0 Security Payment OS

Supports 4G LTE Wi-Fi, Bluetooth, Contactless/NFC.GPS

FBI Certificated Fingerprint module/5800 mAh Lithiun lon Battery

4 PSAM Card Slots,2 SIM Card Slots/5 Mega, CMOS, Supports Barcode





FAQ:

Q: Does your stand secured?

A: Yes, our products are durable metal construction. We have styles with key lock and with screw locked. Please see our brochure for more details.

Q: Would it be possible to order a sample of products?

A: Yes, definitely no problem to order one sample at first before bulk order.

Q: I would like to order custom tablet stand. Do you manufacture custom design tablet stand?

A: Yes, we have strong R&D center who can custom creative design for you. Please offer us your requirements.

Q: Is it possible to have our logo printed on top of it?

A: Yes, it is no problem to print logo on top of the tablet enclosure. Please offer us the logo picture and offer us international Pan-tone color code for the logo color.

Q: Are you a manufacturer?

A: Yes, we have our own factory with advanced facilities.



Why choose us? To be sure.
1. Professional: We are a mobile POS device and industry tablet manufacturer with more than 10 years experience.
2. Cost-effective Price: we have the best price, cost-effective, good quality.

3. Customer service: We will handle all your questions, any question just email us or call us, we will try our best to help you out.


WCT-T90 Android POS Configuration
Type Product Spec
Platform Processor MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC, TF Card Supported
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT NA
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 210mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)
