CMOS Waterproof Handheld Barcode Scanner PDF 417 UPC 13mil 2d

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: WCT
Certification: CE Model Number: Q3

Detail Information

Imaging Sensor: 640*480 CMOS System Compatibility: Linux/Android/WindowsXP、7、8、10/MacOS
The Type Of Barcode That Can Be Swept: 1D/2D Bar Code Waterproof And Dustproof: IP54 Compliant
Operating Temperature Rage: -20-55°C Motion Tolerance: Motion Tolerance
Symbol Contrast: 25% Second Development: Second Development
High Light:

CMOS Waterproof Handheld Barcode Scanner


PDF 417 Handheld Barcode Scanner


UPC 13mil 2d Barcode Scanner

Product Description

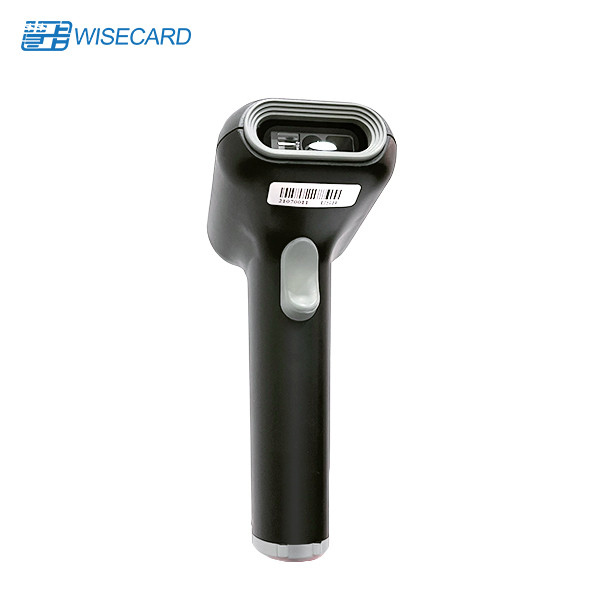

CMOS Waterproof Handheld Barcode Scanner PDF 417 UPC 13mil 2d

Description Of Smart Scanner
WCT-Q3 Bluetooth CCD barcode scanner that can read 1D & 2D barcodes both on paper and screen. In modern society, all the product spec, price, serial number and etc. information are stored in bardcode which can easily be read through the scanner. WCT-Q3 are widely used in all kinds of business occasion such as retail, restaurant, warehouse and etc. The outstanding quality and various OS adaption which makes it to be considered as one of the best products across the market.


Feature Of Smart Scanner

1. With 640*480CMOS Imaging sensor

2. Support Linux,Android,WindowsXP,7,8,10,MacOS

3. Support American-English, French, Italian, German, Spanish, Finnish,

4. Identify the angle range: The corner ± 360 degrees, the elevation ± 60 degrees, and the angle ± 70 degrees


Imaging sensor 640*480CMOS
Decode type One dimensional code EAN-8,EAN-13,EAN-132add-on,EAN-135add-on,ISSN,ISBN,UPC-A,UPC-E,Code 11Code 32,Code 39,Code 39 FULL ASCII,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,IS BT-128,GS 1-128,GS1DataBar(RSS 14) ,GS1DataBar Limited,GS1DataBar Expanded
QR code PDF 417,Micro PDF 417,Micro QR, DataMatrix,QR,Aztec
Scanning area Test the barcode Minimum range Maximum range
UPC-13mil 4cm 35cm
20mil code 39 7cm 50cm
20milQR Code 2cm 30cm
System compatibility Linux,Android,WindowsXP,7,8,10,MacOS
Supported keyboard American-English, French, Italian, German, Spanish, Finnish, Japanese, Russian, Arabic, Irish, Bo, Dutch, Czech, Portuguese (Portuguese, Brazilian), Swedish, Turkish, Turkish, Greek, Belgian, French, British-English
The type of barcode that can be swept Film 1D and 2D bar code;
Identify the angle range The corner ± 360 degrees, the elevation ± 60 degrees, and the angle ± 70 degrees
Anti-fall Can withstand 2 meters free fall 5 times
Waterproof and dustproof IP54 compliant
Operating temperature range -20-55°C
Save the temperature range -20-60°C
Light Blue power LED, decoded flashing
Buzzer Start prompt, decode success prompt
Keystroke Trigger the scan
Net weight of the host 100g
Includes packing and accessory weight 300g
Host size (length, width, height mm 168mm*85mm*62mm
Package size (length, width, height mm) 240*140*89mm
The length of the data line 180CM(±3CM)
Communication interface USB port (drive-free), USB virtual serial port (install drive), serial port (drive-free)
Operating voltage 5V


Application Of Smart POS Terminal

1. Retail

2. Restaurant& hospitality

3. Field services

4. Warehouse &manufacturing
