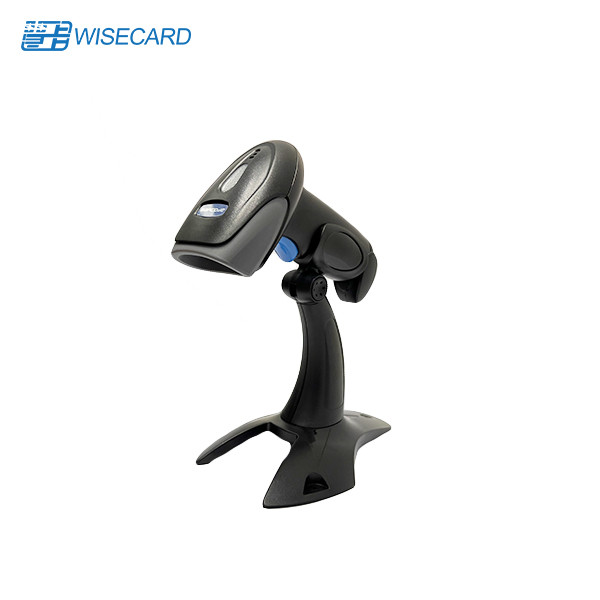

Auto Sense Handheld Barcode Scanner Portable USB 1D 2D Laser Barcode Reader
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | packing details: standard export carton, can be customized. port: Shen Zhen ports | Delivery Time : | 7 work days |
| Payment Terms : | T/T | Supply Ability : | 100,000 pcs per week |
| Place of Origin: | China | Brand Name: | Wisecard |
|---|---|---|---|
| Certification: | SGS/ROHS/CE/ISO/CE RED | Model Number: | barcode scanner |
|
Detail Information |
|||
| Imaging Sensor: | 640*480 CMOS | QR Code: | PDF 417、Micro PDF 417、Micro QR， DataMatrix、QR、Aztec |
|---|---|---|---|
| System Compatibility: | Linux、Android、WindowsXP、7、8、10、MacOS | Anti-fall: | Can Withstand 2 Meters Free Fall 5 Times |
| Waterproof And Dustproof: | IP54 Compliant | Operating Temperature Range: | -20-55°C |
| Host Size: | (length, Width, Height Mm)168mm*85mm*62mm | Package Size: | (length, Width, Height Mm)240*140*89mm |
| High Light: | Handheld Imagers Wireless Barcode Scanner,ISSN Wireless Barcode Scanner,UPC A Cordless Barcode Scanner |
||
Product Description
Cordless 1d 2d Handheld Imagers Wireless Barcode Scanner
Description Of Smart Scanner
WCT-Q2s Bluetooth CCD barcode scanner that can read 1D & 2D barcodes both on paper and screen. Deployment couldn’t be simpler. The WCT-Q2s is pre-configured and ready to use right out of the box. Just plug the WCT-Q2s into your POS and our auto-host detect cables will automatically identify the interface and connect the imager for you. And if you want to customize your settings, our complimentary scan software tool is so intuitive than even a first time user can easily create a single programming barcode that allows you to configure devices with one scan.
Feature Of Smart Scanner
1. With 640*480CMOS Imaging sensor
2. Buzzer: Start prompt, decode success prompt
3. Support Turkish, Greek, Belgian, French, British-English
4. Anti-fall: Can withstand 2 meters free fall 5 times
| Specification | |||||
| Imaging sensor | 640*480CMOS | ||||
| Decode type | One dimensional code | EAN-8,EAN-13,EAN-132add-on,EAN-135add-on,ISSN,ISBN,UPC-A,UPC-E,Code 11Code 32,Code 39,Code 39 FULL ASCII,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,IS BT-128,GS 1-128,GS1DataBar(RSS 14) ,GS1DataBar Limited,GS1DataBar Expanded | |||
| QR code | PDF 417,Micro PDF 417,Micro QR, DataMatrix,QR,Aztec | ||||
| Scanning area | Test the barcode | Minimum range | Maximum range | ||
| UPC-13mil | 4cm | 35cm | |||
| 20mil code 39 | 7cm | 50cm | |||
| 20milQR Code | 2cm | 30cm | |||
| System compatibility | Linux,Android,WindowsXP,7,8,10,MacOS | ||||
| Supported keyboard | American-English, French, Italian, German, Spanish, Finnish, Japanese, Russian, Arabic, Irish, Bo, Dutch, Czech, Portuguese (Portuguese, Brazilian), Swedish, Turkish, Turkish, Greek, Belgian, French, British-English | ||||
| The type of barcode that can be swept | Film 1D and 2D bar code; | ||||
| Identify the angle range | The corner ± 360 degrees, the elevation ± 60 degrees, and the angle ± 70 degrees | ||||
| Anti-fall | Can withstand 2 meters free fall 5 times | ||||
| Waterproof and dustproof | IP54 compliant | ||||
| Operating temperature range | -20-55°C | ||||
| Save the temperature range | -20-60°C | ||||
| Light | Blue power LED, decoded flashing | ||||
| Buzzer | Start prompt, decode success prompt | ||||
| Keystroke | Trigger the scan | ||||
| Net weight of the host | 100g | ||||
| Includes packing and accessory weight | 300g | ||||
| Host size (length, width, height mm | 168mm*85mm*62mm | ||||
| Package size (length, width, height mm) | 240*140*89mm | ||||
| The length of the data line | 180CM(±3CM) | ||||
| Communication interface | USB port (drive-free), USB virtual serial port (install drive), serial port (drive-free) | ||||
| Operating voltage | 5V | ||||
Application Of Smart POS Terminal
1. Retail
2. Restaurant& hospitality
3. Field services
4. Warehouse &manufacturing
FAQ
Q: How is the quality?
A: We have very strict quality controlling which promises the goods we produced are always of the best quality.
Q: How long is your guarantee period ?
A: 1 year warranty, full responsibility for warranty. We are very confident in our products, if any issue, we will deal with it immediately.
Q: How is the Service?
A: We (wisecard tech) have global after-sales service network.
