Auto Sense Handheld Barcode Scanner Portable USB 1D 2D Laser Barcode Reader
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | 1 pc per box, 10 pc per carton | Delivery Time : | 1-4 weeks |
| Payment Terms : | T/T | Supply Ability : | 10000 Set/Sets per Month |
| Place of Origin: | China | Brand Name: | WCT |
|---|---|---|---|
| Certification: | CE | Model Number: | Q3 |
|
Detail Information |
|||
| Imaging Sensor: | 640*480 CMOS | System Compatibility: | Linux/Android/WindowsXP、7、8、10/MacOS |
|---|---|---|---|
| The Type Of Barcode That Can Be Swept: | 1D/2D Bar Code | Waterproof And Dustproof: | IP54 Compliant |
| Operating Temperature Rage: | -20-55°C | Light: | Blue Power LED, Decoded Flashing |
| Buzzer: | Start Prompt, Decode Success Prompt | Keystroke: | Trigger The Scan |
| High Light: | 13mil UPC Wireless Barcode Scanner,Bluetooth CCD Wireless Barcode Scanner,640×480 CMOS Laser Barcode Reader |
||
Product Description
Description Of Smart Scanner

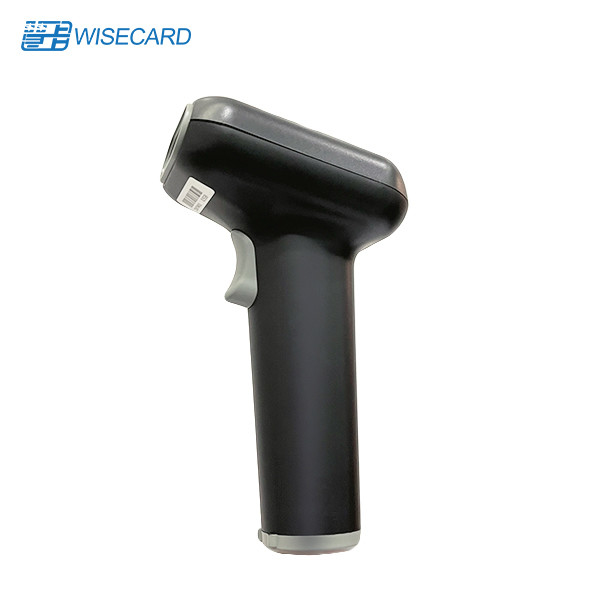

WCT-Q3 Bluetooth CCD barcode scanner that can read 1D & 2D barcodes both on paper and screen. It is built with solid and light form material which could be used after 10000 fall tests without any issues. It can scan codes on paper, screen and etc materials with 100% accuracy. Various operating systems are adapted, include Linux,Android,WindowsXP,7,8,10,MacOS and etc.
Feature Of Smart Scanner
1. With 640*480CMOS Imaging sensor
2. Support Linux,Android,WindowsXP,7,8,10,MacOS
3. Support American-English, French, Italian, German, Spanish, Finnish,
4. Identify the angle range: The corner ± 360 degrees, the elevation ± 60 degrees, and the angle ± 70 degrees
| Specification | |||||
| Imaging sensor | 640*480CMOS | ||||
| Decode type | One dimensional code | EAN-8,EAN-13,EAN-132add-on,EAN-135add-on,ISSN,ISBN,UPC-A,UPC-E,Code 11Code 32,Code 39,Code 39 FULL ASCII,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,IS BT-128,GS 1-128,GS1DataBar(RSS 14) ,GS1DataBar Limited,GS1DataBar Expanded | |||
| QR code | PDF 417,Micro PDF 417,Micro QR, DataMatrix,QR,Aztec | ||||
| Scanning area | Test the barcode | Minimum range | Maximum range | ||
| UPC-13mil | 4cm | 35cm | |||
| 20mil code 39 | 7cm | 50cm | |||
| 20milQR Code | 2cm | 30cm | |||
| System compatibility | Linux,Android,WindowsXP,7,8,10,MacOS | ||||
| Supported keyboard | American-English, French, Italian, German, Spanish, Finnish, Japanese, Russian, Arabic, Irish, Bo, Dutch, Czech, Portuguese (Portuguese, Brazilian), Swedish, Turkish, Turkish, Greek, Belgian, French, British-English | ||||
| The type of barcode that can be swept | Film 1D and 2D bar code; | ||||
| Identify the angle range | The corner ± 360 degrees, the elevation ± 60 degrees, and the angle ± 70 degrees | ||||
| Anti-fall | Can withstand 2 meters free fall 5 times | ||||
| Waterproof and dustproof | IP54 compliant | ||||
| Operating temperature range | -20-55°C | ||||
| Save the temperature range | -20-60°C | ||||
| Light | Blue power LED, decoded flashing | ||||
| Buzzer | Start prompt, decode success prompt | ||||
| Keystroke | Trigger the scan | ||||
| Net weight of the host | 100g | ||||
| Includes packing and accessory weight | 300g | ||||
| Host size (length, width, height mm | 168mm*85mm*62mm | ||||
| Package size (length, width, height mm) | 240*140*89mm | ||||
| The length of the data line | 180CM(±3CM) | ||||
| Communication interface | USB port (drive-free), USB virtual serial port (install drive), serial port (drive-free) | ||||
| Operating voltage | 5V | ||||
Application Of Smart POS Terminal
1. Retail
2. Restaurant& hospitality
3. Field services
4. Warehouse &manufacturing
Our service
We provide one-stop solution that covers a wide range of products, where our customers may easily find everything they need including convenient after-sale services. Based on the principle of providing the most satisfaction, cost effectiveness is one of our competitive advantages. Our products are all qualified to the highest standard and have the best durability.
FAQ:
Q:Are you a factory or simply a trading company?
A: We are a true OEM/ODM factory. Please read our company profile, for more information on this issue.
Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also, please be aware, some factories may not advise you, but after the production delays, you might be facing a few more days delays before catching your sea or your on-board flight departures. ( might be anywhere from 3 to 7 working days). Again, depending in which season you are shipping.
Q:Can we print our Logo on the products? What is MOQ?
A:We can print your own Logo on it as you like. There is no MOQ for stock models. For customized models will depending on your requests. Different methods are used for logos, please ask your Key Account MGR for more information on this issue, we will surely find the right solution for you!
Q: What payment methods your company accept?
A: We accept most of the payment methods, but mainly accept T/T.
