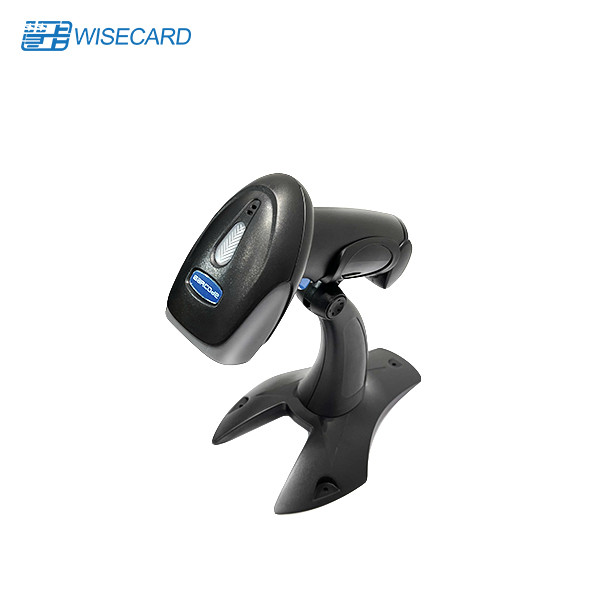

Supermarket Handheld Barcode Scanner 1D 2D Wired USB CMOS Imaging Sensor

China Wisecard Technology Co., Ltd. certification
China Wisecard Technology Co., Ltd. certification
With the cooperation between WISECARD and Malaysian client, WISECARD’ s solutions can meet the different needs of each bank with high quality on time and help banks in Myanmar improve both their service quality and images, further making their business successfully. We will highly appreciate the great support that is offered by Wisecard’s solution.

—— Myanmar

As the first STM solution provider to enter Cambodia, Wisecard's products have been well welcomed by people inside and outside the industry. This business cooperation has enhanced our local confidence in smart banking solutions. We want to thanks wisecard’s helpful support from the button of our heart.

—— Cambodia

Dubai client is using Wisecard's TPS to operate a number of high-volume Personalization Machines personalizing ITSO compliant ticket cards. Wisecard brought substantial experience in Public Transport Ticketing and cryptographic card applications to the project and implemented a highly complex solution in a very short time.

—— The UK

Wisecard supplied the SmartOne is a vendor-independent EMV Personalization Management System, offering the solution to this issue. Wisecard managed to deploy the system remotely and performed user and developer training via video conferencing. Spanish client is looking forward to establishing a tighter business relationship with Wisecard.

—— Spain

I'm Online Chat Now

Supermarket Handheld Barcode Scanner 1D 2D Wired USB CMOS Imaging Sensor

Supermarket Handheld Barcode Scanner 1D 2D Wired USB CMOS Imaging Sensor
Supermarket Handheld Barcode Scanner 1D 2D Wired USB CMOS Imaging Sensor

Large Image :  Supermarket Handheld Barcode Scanner 1D 2D Wired USB CMOS Imaging Sensor

Product Details:
Place of Origin: China
Brand Name: Wisecard
Certification: SGS/ROHS/CE/ISO/CE RED
Model Number: barcode scanner
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: packing details: standard export carton, can be customized. port: Shen Zhen ports
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 100,000 pcs per week
Detailed Product Description
Imaging Sensor: 640*480 CMOS QR Code: PDF 417、Micro PDF 417、Micro QR, DataMatrix、QR、Aztec
System Compatibility: Linux、Android、WindowsXP、7、8、10、MacOS Anti-fall: Can Withstand 2 Meters Free Fall 5 Times
Net Weight Of The Host: 100g Keystroke: Trigger The Scan
Buzzer: Start Prompt, Decode Success Prompt
Highlight:

Supermarket Handheld Barcode Scanner

,

20mil Handheld Barcode Scanner

,

Wired USB CMOS Barcode Scanning Gun

1D 2D Wired USB Corded Area-Imagering Standard Range Supermarket Handheld Barcode Scanner

Description Of Smart Scanner
Deployment couldn’t be simpler. The WCT-Q2s is pre-configured and ready to use right out of the box. Just plug the WCT-Q2s into your POS and our auto-host detect cables will automatically identify the interface and connect the imager for you. And if you want to customize your settings, our complimentary 123Scan software tool is so intuitive than even a first time user can easily create a single programming barcode that allows you to configure devices with one scan.





Feature Of Smart Scanner

1. With 640*480CMOS Imaging sensor

2. Buzzer: Start prompt, decode success prompt

3. Support Turkish, Greek, Belgian, French, British-English

4. Anti-fall: Can withstand 2 meters free fall 5 times



Specification
Imaging sensor 640*480CMOS
Decode type One dimensional code EAN-8,EAN-13,EAN-132add-on,EAN-135add-on,ISSN,ISBN,UPC-A,UPC-E,Code 11Code 32,Code 39,Code 39 FULL ASCII,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,IS BT-128,GS 1-128,GS1DataBar(RSS 14) ,GS1DataBar Limited,GS1DataBar Expanded
QR code PDF 417,Micro PDF 417,Micro QR, DataMatrix,QR,Aztec
Scanning area Test the barcode Minimum range Maximum range
UPC-13mil 4cm 35cm
20mil code 39 7cm 50cm
20mil QR Code 2cm 30cm
System compatibility Linux,Android,WindowsXP,7,8,10,MacOS
Supported keyboard American-English, French, Italian, German, Spanish, Finnish, Japanese, Russian, Arabic, Irish, Bo, Dutch, Czech, Portuguese (Portuguese, Brazilian), Swedish, Turkish, Turkish, Greek, Belgian, French, British-English
The type of barcode that can be swept Film 1D and 2D bar code;
Identify the angle range The corner ± 360 degrees, the elevation ± 60 degrees, and the angle ± 70 degrees
Anti-fall Can withstand 2 meters free fall 5 times
Waterproof and dustproof IP54 compliant
Operating temperature range -20-55°C
Save the temperature range -20-60°C
Light Blue power LED, decoded flashing
Buzzer Start prompt, decode success prompt
Keystroke Trigger the scan
Net weight of the host 100g
Includes packing and accessory weight 300g
Host size (length, width, height mm 168mm*85mm*62mm
Package size (length, width, height mm) 240*140*89mm
The length of the data line 180CM(±3CM)
Communication interface USB port (drive-free), USB virtual serial port (install drive), serial port (drive-free)
Operating voltage 5V



Application Of Smart POS Terminal

1. Retail

2. Restaurant& hospitality

3. Field services

4. Warehouse &manufacturing





FAQ

Q: Are you manufacturer?
A: Yes.Our company headquarters is located in Nanjing of China, factory in shenzhen.
Q: Can you provide application software for the hardware?
A: We provide free SDK and User manual of all API to support your development or programming.
Q: Does the device have the language default as English?
A: Of course, our device supports multi-language such as English,Spanish, Portuguese ,French, German,Polish,Japanese, Russian and so on.
Q: Can your device install the Android Apps that our customers provide?
A: No problem. Just send us your Apps which you need to get the liscense of the apps and then our Engineers can do that for you.





Quality guarantee

1. All our products have one year guarantee from the shipping date

2. Under Guarantee: if any non-human damage happen, we’ll offer free pairing or replacement, including delivery cost

3. Out of guarantee: we offer repairing pats at lower cost, and service free in charge.
