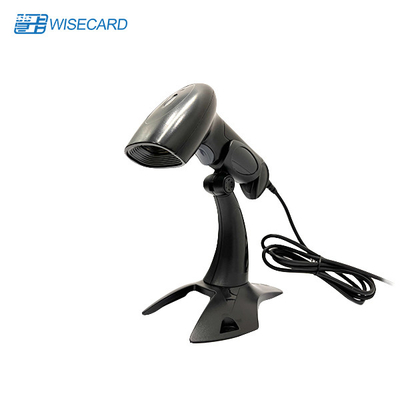

1D 2D QR Code USB Wired Wireless Handheld Bar Code Reader Barcode Scanner
Description Of Smart Scanner
Features
1.Fast and accurate in reading all common 1D & 2D codes
2.Service life of button reaches up to 8 million times.
3.Long Rang transimmion
4.Dual mode:wired and wireless
5.Durable 2.4G Mini Receiver
Symbology Decode Capability
1D: UPC/EAN with supplementals, Code 39, Code 39 Full ASCII, Trioptic Code 39, RSS variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32
PDF417: PDF417, microPDF417 and composite codes
Postal: U.S. Postnet and Planet, U.K., Japan, Australian, and Dutch
2D: MaxiCode, DataMatrix (ECC 200), QR Code
Feature Of Smart Scanner
1. With 640*480CMOS Imaging sensor
2. Buzzer: Start prompt, decode success prompt
3. Support Turkish, Greek, Belgian, French, British-English
4. Anti-fall: Can withstand 2 meters free fall 5 times
| Specification |
| Imaging sensor |
640*480CMOS |
| Decode type |
One dimensional code |
EAN-8,EAN-13,EAN-132add-on,EAN-135add-on,ISSN,ISBN,UPC-A,UPC-E,Code 11Code 32,Code 39,Code 39 FULL ASCII,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,IS BT-128,GS 1-128,GS1DataBar(RSS 14) ,GS1DataBar Limited,GS1DataBar Expanded |
| QR code |
PDF 417,Micro PDF 417,Micro QR, DataMatrix,QR,Aztec |
| Scanning area |
Test the barcode |
Minimum range |
Maximum range |
| UPC-13mil |
4cm |
35cm |
|
| 20mil code 39 |
7cm |
50cm |
|
| 20mil QR Code |
2cm |
30cm |
|
| System compatibility |
Linux,Android,WindowsXP,7,8,10,MacOS |
| Supported keyboard |
American-English, French, Italian, German, Spanish, Finnish, Japanese, Russian, Arabic, Irish, Bo, Dutch, Czech, Portuguese (Portuguese, Brazilian), Swedish, Turkish, Turkish, Greek, Belgian, French, British-English |
| The type of barcode that can be swept |
Film 1D and 2D bar code; |
| Identify the angle range |
The corner ± 360 degrees, the elevation ± 60 degrees, and the angle ± 70 degrees |
| Anti-fall |
Can withstand 2 meters free fall 5 times |
| Waterproof and dustproof |
IP54 compliant |
| Operating temperature range |
-20-55°C |
| Save the temperature range |
-20-60°C |
| Light |
Blue power LED, decoded flashing |
| Buzzer |
Start prompt, decode success prompt |
| Keystroke |
Trigger the scan |
| Net weight of the host |
100g |
| Includes packing and accessory weight |
300g |
| Host size (length, width, height mm |
168mm*85mm*62mm |
| Package size (length, width, height mm) |
240*140*89mm |
| The length of the data line |
180CM(±3CM) |
| Communication interface |
USB port (drive-free), USB virtual serial port (install drive), serial port (drive-free) |
| Operating voltage |
5V |
Application Of Smart POS Terminal
1. Retail
2. Restaurant& hospitality
3. Field services
4. Warehouse &manufacturing
Quality guarantee:
1. All our products have one year guarantee from the shipping date
2. Under Guarantee: if any non-human damage happen, we’ll offer free pairing or replacement, including delivery cost
3. Out of guarantee: we offer repairing pats at lower cost, and service free in charge.
Custom design is welcome:
Customized projects accepted including software and hardware.
Don't hesitate to share your idea with us, we have experienced engineer team and always do our best to help client's project.
Quality guarantee
1. All our products have one year guarantee from the shipping date
2. Under Guarantee: if any non-human damage happen, we’ll offer free pairing or replacement, including delivery cost
3. Out of guarantee: we offer repairing pats at lower cost, and service free in charge.
