Dual Cameras Android POS Terminal , Smart POS With Fingerprint Reader

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1 pc per box, 10 pc per carton Delivery Time : 1-4 weeks
Payment Terms : T/T Supply Ability : 10000 Set/Sets per Month
Place of Origin: China Brand Name: Wisecard
Certification: PCI CE Rohs Model Number: S8

Detail Information

OS: Android 7 Or Above FingerPrint: Optional
Screen: 5.5 Inch Touch Screen Battery: 7.4V5800mAh
Printer: Thermal Printer Inbedded Camera: 5M Pixel
CardReader: Contactless, Contact, Magstripe Color: Red
High Light:

Dual Cameras Android POS Terminal

,

5.5in Android POS Terminal

,

Android POS with fingerprint reader

Product Description

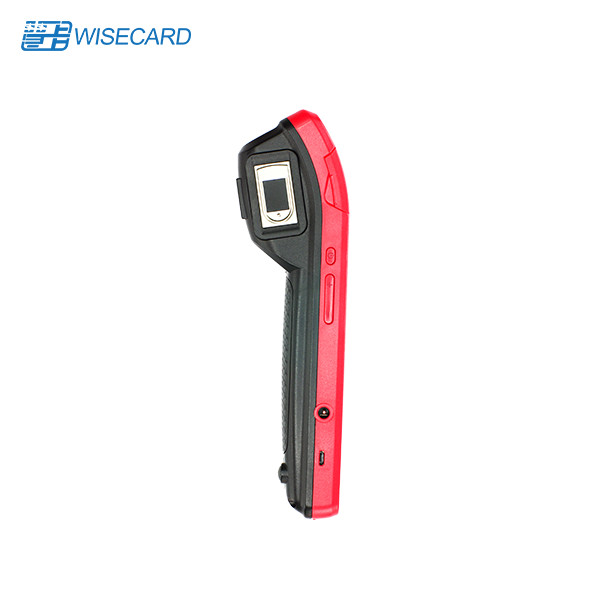

Fingerprint Android Smart POS Terminal Dual Cameras Front and Rear



★ Android 7.0 OS and Quad-Core
The performance of WCT-S8 is higher than the general level on the market since it's powered by Android 7.0 system (also called Android Oreo) and a Quad-Core processor with 1GB DDR+8GB memory or 2GB + 16GB.
★ Smart Payments All In One Machine
WCT-S8 supports reading Contact Card, NFC card, IC card, QR-code, Dual interface card, magnetic card. So it can serve for contact and contactless payment, QR-code Payment, smart card payment. Support ISO14443 Type A/B, ISO/IEC 14443&7816, ISO18092 compliant.





WCT-S8 Android POS Configuration
Type Product Spec
Platform Processor MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz )
RAM 1GB / 2GB LPDDR3
FLASH 8GB / 16GB EMMC
OS Android 7.0 Security Payment OS
Security Processor MAXIM MAX32555 (DeepCover Secure microcontroller)
Wireless Wireless Standard LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
4G LTE-FDD : B1/B3/B8 (TBD)
TDD-LTE : B38/B39/B40/B41
3G UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8
TDS-CDMA : B34/B39
EVDO : BC0
2G EDGE/GPRS : B3/B8
WLAN 2.4GHz ISM 2402MHz~2482MHz
BT 4.1 LE 2.4GHz ISM 2402MHz~2480MHz
USIM Card Slots 4 PSAM slots, 2 SIM slots
GPS GPS GPS, GLONASS
LCD and Touch Panel LCD Pixels 720*1280 IPS
LCD 5.5 inch
Touch Panel G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video capable
Keypad Physical key Power ON/OFF, Volumn up, Volumn down.
Virtual Keypad Home Key, Function key, Numeric Keys.
Audio Speaker 1 W x 1
Microphone Voice input
USB USB Standard USB Type C 2.0
Other Charge Battery, OTG support
Camera REAR 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
FRONT 2Mega Pixels, CMOS, JPEG picture, Video.
NFC Standard ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support )
Spectrum 13.56MHz
IC card Contactless Card NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card Smart Card EMV & PBOC Compliant
MSR Magnetic Card ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery Battery type Li-ion polymer battery
Capacity 3.7V, 5800mAh
Charger 5V/2A
Certification ICC EMV contact L1 / PBCO L1
EMV contact L2 / PBOC L2
NFC EMV contactless L1 / qPBOC L1
EMV contactless L2 / qPBOC L2
Security PCI 5.0
UPTS 2.0
Operating environment Temperature -5 to +50 °C
Relative humidity 10 % to 85 % RH
Storage environment Temperature -10 to +60 °C
Relative humidity 10 % to 90 % RH
Size and Weigt Dimension and Weight 203mm*85mm*53mm, 480g with battery
Micro Printer Printing method Thermal-line dot method
Paper Thermal roll paper (standard) 57*40 mm
Effective Printing area 48mm
Speed Maximum 70mm/sec(480 dot line/sec)
Printing resolutions 8 dots/mm
Character 12*24dots and 24*48 dots
Number of columns 32columns/line
Printing head life Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)



FAQ:

1. Are you an original manufacturer?

Yes, Wisecardtech is the original manufacturer which is specialized in thermal printer.



2. Would you provide SDK for me?

Yes, Wisecardtech will offer SDK for free.



3. How about the warranty for the products?

According to our warranty policy, Wisecardtech will provide 12 months warranty time from the shipment date for our products (Excluded the consumable parts).



4. How about the minimum order?

Wisecardtech accepts one piece sample order for standard products. If OEM/ODM needed, please DM for more details.



5. Do you accept T/T?

Yes, we accept T/T.



6. How about the delivery time?

Generally, sample can be shipped within 2-3 working days after payment. Big order lead time depends on the quantity, normally 1 to 4 weeks.



7. How about the shipping methods?

By Express: DHL, UPS, TNT, FEDEX or Aramex EMS E-packing

By Sea: Inform us the Sea Port to check which ship line

By air: Inform us the Airport to check which flight

Or pick up by the customers



8. How about the after sales service?

a. Our all products will provide 12 months warranty

b. Enough stock spare parts for guarantee

c. Professional engineers provide 7*24 online service

Dual Cameras Android POS Terminal , Smart POS With Fingerprint Reader 0Dual Cameras Android POS Terminal , Smart POS With Fingerprint Reader 1Dual Cameras Android POS Terminal , Smart POS With Fingerprint Reader 2
