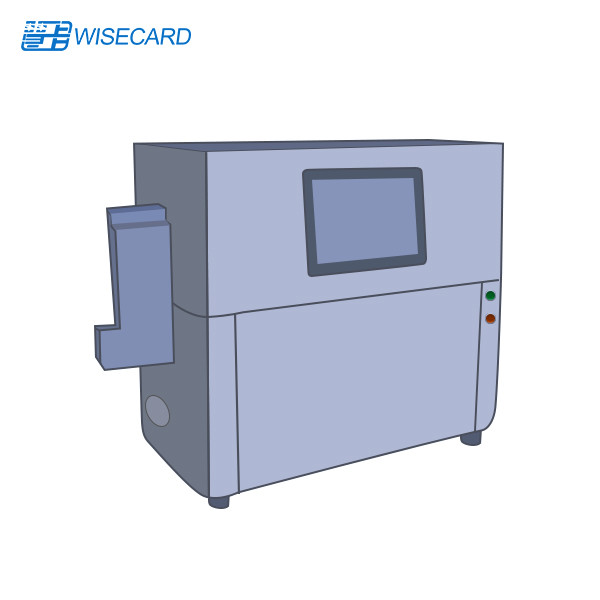

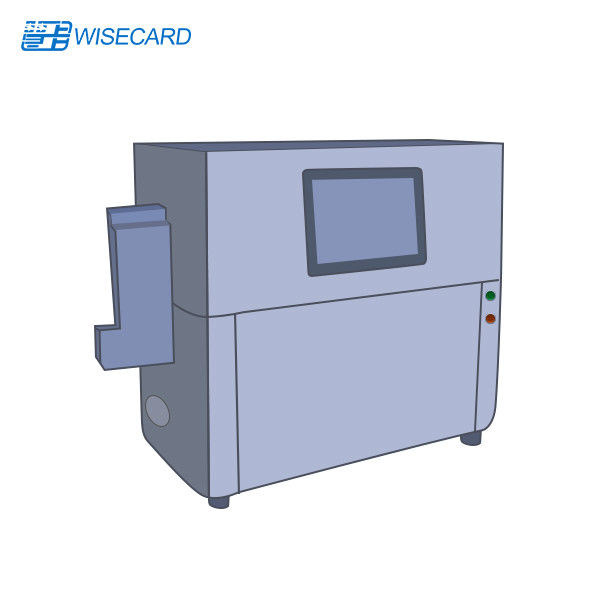

Secure EMV Perso Machine , ATM Card Printing Machine

Minimum Order Quantity : Negotiable Price : Negotiable
Delivery Time : 8 weeks Payment Terms : T/T
Supply Ability : 50
Place of Origin: China Brand Name: Wisecard
Certification: PCI Compliant Model Number: WCT-Embosser

Detail Information

Industry: Banking Type: Central Issuance
Print Resolution: 600*600 Comm Interface: USB, Ethernet, RS232
Print Mode: Dual Side OS Support: Windows
Communication: USB And Ethernet Certificate: PCI EMV CE RoHS
High Light:

Wisecard Perso Machine

,

RoHS Perso Machine

,

EMV atm card printing machine

Product Description

Cost-efficient and Secure EMV Card Issuance Card Printing Machine



OVERVIEW
WCT-Embosser is an upgrade product designed for the increasing production requirement of chip encapsulation & testing factories and smart card manufacturers. The brand-new design enables operators to switch chips production between 6PIN and 8PIN within 60 seconds.
It integrates short-circuit punching, open and short test, chip initialization & pre-personalization as well as reject chip punching and marking. Modular design can meet your different production requirements and maximize decreasing your investment cost.
WCT-Embosser can be applied to contact/contactless and dual interface chip initialization, and also can be customized according to the demands for various chip production.
ADVANTAGE
• Unique Patented Technology
It only takes 60s to switch production tasks between 6PIN and 8PIN contact chip.
• High-performance Reader
The top Chinese industrial-class reader developed with open/short test function is stable and high cost-effective.
• Modular Design
Each module can work independently or be combined on demand.
• Unrestricted Workplace
Free of production site due to electric driving design without external air supply.



Specification Of Retransfer Card Printer
Print Method Dye-sublimation retransfer
Print Mode Dual side (standard configuration)
Print Resolution 600 x 600 dpi
Print Speed 170 cph (YMC single side, batch mode)
Printhead: Lifetime warranty (using EDIsecure® materials) (other conditions apply)
Card Types PVC, PET-G, PET, ABS, PC
Card Thickness: 0.25 mm - 1.0 mm (10 mil - 40 mil)
Input Capacity 250 cards (0.76mm / 30mil)
Output Capacity 250 cards (0.76mm / 30mil)
Communications Interface: USB (1.0, 1.1, 2.0, 3.0). USB cable supplied.
Ethernet 10BaseT, 100BaseT
Serial RS-232C
OS Support Windows 10 (32/64 bits), Windows 8 (32/64 bits), Windows 7 (32/64 bits)
Windows Vista (32 bits), Windows Server 2008 R2
Printer Net Weight 20 kg.(44.09 lbs) - main body, not including parts
Printer Dimension 436 x 340 x 297 mm. (17.2” x 13.4” x 11.7”)
Power Supply AC90/125V, 220-240V, 50-60 Hz
Operating Environment Temperature: 10ºC - 30ºC
Humidity: 20% - 80% (non-condensing)
Certificate FCC, CE, UL, GOST-R, and CCC approved





Secure EMV Perso Machine , ATM Card Printing Machine 0



Company Information:

Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.



Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.



Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.



Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
