Wisecard FPL6181H Bank Card Personalization Machine Magentic Stripe Encoding

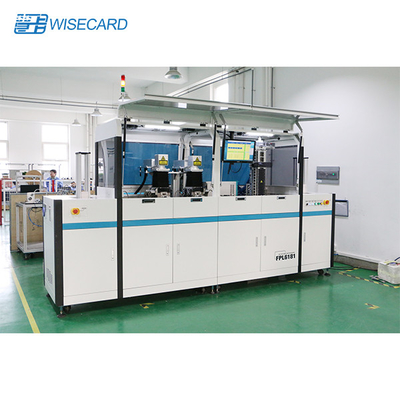

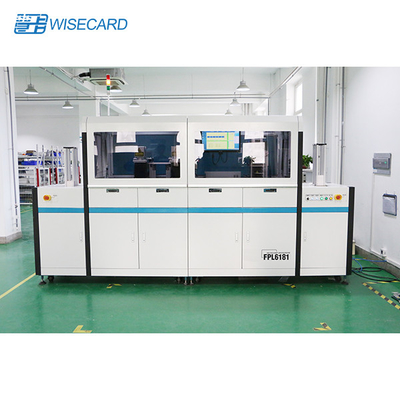

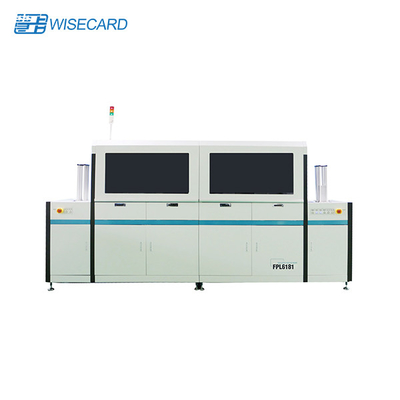

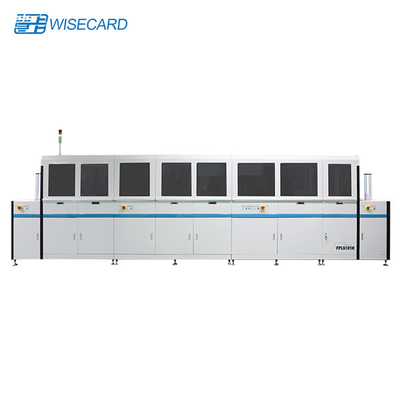

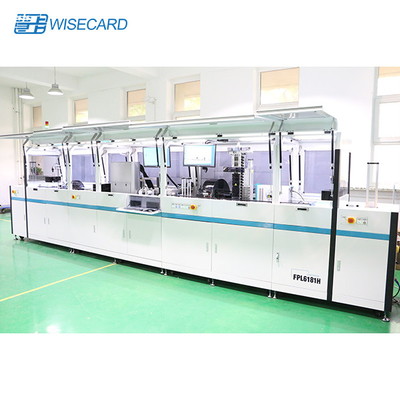

Large Image : Wisecard FPL6181H Bank Card Personalization Machine Magentic Stripe Encoding

Product Details:

Place of Origin:	China
Brand Name:	Wisecard
Certification:	ISO14443/7816
Model Number:	FPL6181H

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiate
Delivery Time:	2 weeks after payment
Payment Terms:	T/T
Supply Ability:	10 sets per month

Contact Now

Detailed Product Description

Dimension:	6100mm×900mm×1900mm	Weight:	950Kg
Power Supply:	220V(-5%～+10%), 50Hz, 5.5KW	Noise:	≤65dB
Working Temperature:	23±3℃	Working Humidity:	50±10%rh
Air Supply:	Pressure: 0.5Mpa Flow: 200L/M	Material:	Metal
Highlight:	Metal Bank Card Personalization Machine , Magentic Stripe Encoding Personalization Machine , Wisecard Personalization Machine

Wisecard Magentic Stripe Encoding FPL6181H Bank Card Personalization Machine

Description:

New generation of banking card personalization machine based on Wisecard FPL (Flexible Perso Line) platform, which uses DOD Inkjet printing. Friendly for card surface and throughput is up to 6000UPH with optional magentic stripe encoding, contact and contactless encoding, DOD printing, laser engraving, thermal printing and embossing & tipping.

Features:

Embossing and Indent Printing Module has strong expansibility and high throughout:

1.Number of Embossing and Indent Printing Module supports expansion up to 4 Embossing and Indent Printing Modules.

2.The Embossing and Indent Printing Module adopts the parallel working principle to improve the throughout of the whole machine.

Large numbers of IC encoding stations:

1.Max.number of contact IC encoding station is 32.

2.Max.number of contactless IC encoding station is 32.

Thermal Printing Module has strong expansibility and high throughout:

Number of Thermal Printing Module supports expansion up to 4 Thermal Printing Modules. The Thermal Printing Module adopts the parallel working principle to improve the throughout of the whole machine.

Requirements

Material:Bank Card

Core Configuration:Magnetic Strip Encoding Module 1, Contact IC Encoding Module 1(16 Stations), Contactless IC Encoding Module(16 Stations), Thermal Printing Module 1(2 Thermal Modules), Embossing and Indenting Module 1(3 Embossing and Indenting Modules), Tipping Module 1, Checking Module 1(1 OCR Checking Module, 1 Contactless Checking Module, 1 Contact Checking Module).

FAQ:

Q1: Are you a factory or trading company?
A1: We are factory.
Q2: Are all your products available in stock?

A2: Some products are available in stock.Please consult customer service for details to check the inventory quantity at that time.
Q3. What is your lead time?

A3: Inventory: Generally 5-15 dayssome goods are in stock, please contact customer service for details. Or please contact us by emailaccording to the number of your order to determine the specific delivery date.
Q4. Do you take OEM or ODM orders?

A4: Yes, we accept OEM and ODM from customers.
Q5: How about the Shipping Method?

A5: DHL/UPS/TNT/ FedEx are available by air and sea.


Main Structure:

No	Module	Qty	Remark
1	Input Module	1	Configure 1 Input Magazine, Max. 500 pieces; The Module has Card Inclination Detection and Double Sheets Detection. The module can be applicable to OCR checking to check the surface information of the card and match the IC encoding data.
2	Magnetic Strip Encoding Module	1	RINAS magnetic machine, Speed 3000CPH.
3	Contact IC Encoding Module	1	Contact IC Module has 16 Perso Stations; Configure 6 4IN1 Piotec Reader, Type, PT204PT, it can be applicable to ISO 7816 and other various standard protocols.
4	Contactless IC Encoding Module	1	Contactless IC Module has 16 Encoding Stations; Configure 16 Piotec Contactless Reader, Type: PT1301N, it can be applicable to ISO 14443A/B,ISO/IEC 14443&7816,ISO/IEC 15693,Felica and other various standard protocols.
5	Thermal Printing Module	1	Configure 2 Thermal Printing Modules; The module can be applicable to single color thermal transfer printing; the printing resolution ratio: 300DPI; Available Picture Format: BMP .GIF .TIFF .PGN.
6	Embossing and Indent Printing Module	1	Configure 3 Embossing and Indent Printing Modules; The module can be applicable to Embossing printing and Indent Printing; Capacity: Max.120 characters; The word nail complies with ISO standard and international credit card special character standard.
7	Tipping Module	1	l The module can be applicable to gold and silver; l The module has the function of color belt fracture detection and color belt allowance alarm.
8	Checking Module	1	The module has OCR checking, contactless IC checking and contact IC checking. Check the surface, contact IC encoding and contactless IC encoding information of the cards;
