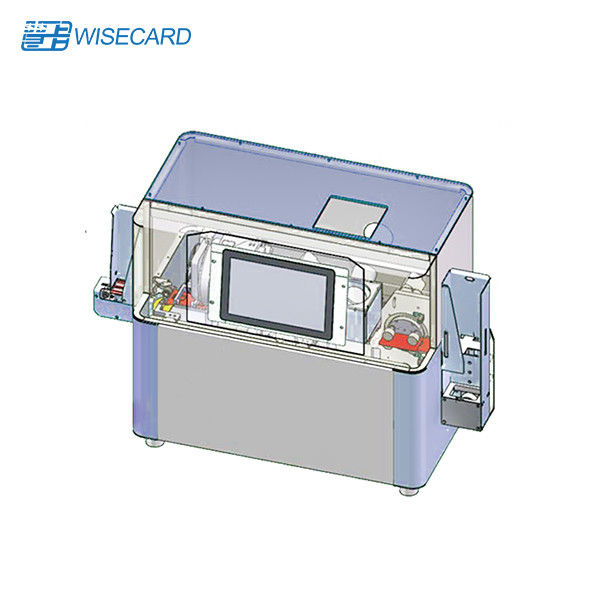

High performance, Secure EMV Card Issuance Card personalization Machine for banking cards
For Customer
More Convenient
with various module combination, save customers effort for bank account activities, enable banks to issue card massively with a very competitive cost.
Time Saving
with issuance of debit andcredit card function, able to issue front indent or front embossing and rear indent cards.
For Bank
Less Cost
issues credit cards at data center in a secure mannter and it is expected to issue up to 500 cards per hour.
More Secure
card data and issuance in a secure manner is always the top priority, can be sitted in the data center to assist the bank to issue card at center and perform central issuance.
| Specification Of Retransfer Card Printer |
| Print Method |
Dye-sublimation retransfer |
| Print Mode |
Dual side (standard configuration) |
| Print Resolution |
600 x 600 dpi |
| Print Speed |
170 cph (YMC single side, batch mode) |
| Printhead: |
Lifetime warranty (using EDIsecure® materials) (other conditions apply) |
| Card Types |
PVC, PET-G, PET, ABS, PC |
| Card Thickness: |
0.25 mm - 1.0 mm (10 mil - 40 mil) |
| Input Capacity |
250 cards (0.76mm / 30mil) |
| Output Capacity |
250 cards (0.76mm / 30mil) |
| Communications Interface: |
USB (1.0, 1.1, 2.0, 3.0). USB cable supplied. |
| Ethernet 10BaseT, 100BaseT |
| Serial RS-232C |
| OS Support |
Windows 10 (32/64 bits), Windows 8 (32/64 bits), Windows 7 (32/64 bits) |
| Windows Vista (32 bits), Windows Server 2008 R2 |
| Printer Net Weight |
20 kg.(44.09 lbs) - main body, not including parts |
| Printer Dimension |
436 x 340 x 297 mm. (17.2” x 13.4” x 11.7”) |
| Power Supply |
AC90/125V, 220-240V, 50-60 Hz |
| Operating Environment |
Temperature: 10ºC - 30ºC |
| Humidity: 20% - 80% (non-condensing) |
| Certificate |
FCC, CE, UL, GOST-R, and CCC approved |
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, Smart POS machine, Android POS, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
