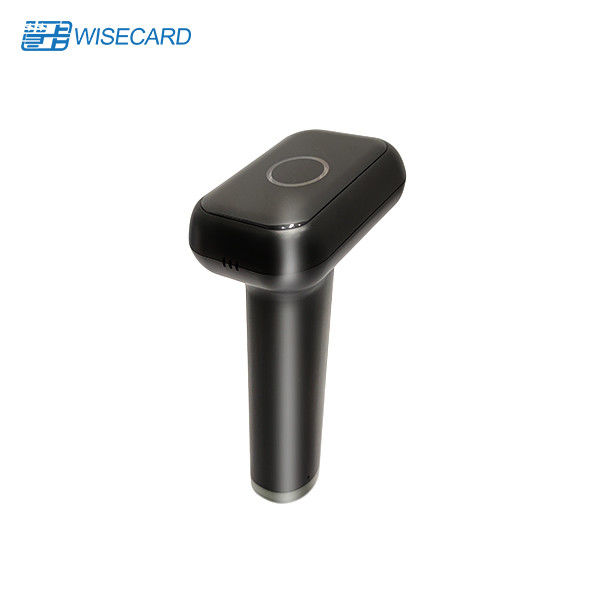

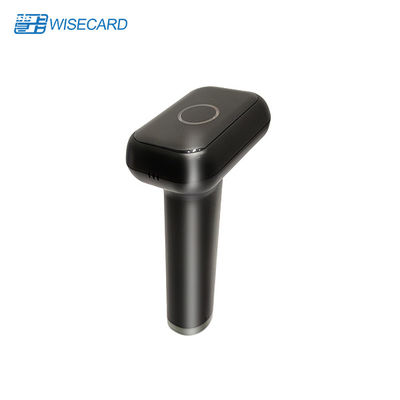

Auto Sense Handheld Barcode Scanner Portable USB 1D 2D Laser Barcode Reader
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | 1 pc per box, 10 pc per carton | Delivery Time : | 1-4 weeks |
| Payment Terms : | T/T | Supply Ability : | 10000 Set/Sets per Month |
| Place of Origin: | China | Brand Name: | WCT |
|---|---|---|---|
| Certification: | CE | Model Number: | Q3 |
|
Detail Information |
|||
| Imaging Sensor: | 640*480 CMOS | System Compatibility: | Linux/Android/WindowsXP、7、8、10/MacOS |
|---|---|---|---|
| The Type Of Barcode That Can Be Swept: | 1D/2D Bar Code | Waterproof And Dustproof: | IP54 Compliant |
| Operating Temperature Rage: | -20-55°C | Light: | Blue Power LED, Decoded Flashing |
| Buzzer: | Start Prompt, Decode Success Prompt | Keystroke: | Trigger The Scan |
| High Light: | Bluetooth CCD Android Handheld Reader,IP54 CMOS Wireless Barcode Scanner,2.4G Laser Wireless Barcode Scanner |
||
Product Description
Fast speed android handheld reader 2.4G laser wireless barcode scanner with CE,ROSH,FCC
WCT-Q3 Bluetooth CCD barcode scanner that can read 1D & 2D barcodes both on paper and screen.
| Specification | |||||
| Imaging sensor | 640*480CMOS | ||||
| Decode type | One dimensional code | EAN-8,EAN-13,EAN-132add-on,EAN-135add-on,ISSN,ISBN,UPC-A,UPC-E,Code 11Code 32,Code 39,Code 39 FULL ASCII,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,IS BT-128,GS 1-128,GS1DataBar(RSS 14) ,GS1DataBar Limited,GS1DataBar Expanded | |||
| QR code | PDF 417,Micro PDF 417,Micro QR, DataMatrix,QR,Aztec | ||||
| Scanning area | Test the barcode | Minimum range | Maximum range | ||
| UPC-13mil | 4cm | 35cm | |||
| 20mil code 39 | 7cm | 50cm | |||
| 20milQR Code | 2cm | 30cm | |||
| System compatibility | Linux,Android,WindowsXP,7,8,10,MacOS | ||||
| Supported keyboard | American-English, French, Italian, German, Spanish, Finnish, Japanese, Russian, Arabic, Irish, Bo, Dutch, Czech, Portuguese (Portuguese, Brazilian), Swedish, Turkish, Turkish, Greek, Belgian, French, British-English | ||||
| The type of barcode that can be swept | Film 1D and 2D bar code; | ||||
| Identify the angle range | The corner ± 360 degrees, the elevation ± 60 degrees, and the angle ± 70 degrees | ||||
| Anti-fall | Can withstand 2 meters free fall 5 times | ||||
| Waterproof and dustproof | IP54 compliant | ||||
| Operating temperature range | -20-55°C | ||||
| Save the temperature range | -20-60°C | ||||
| Light | Blue power LED, decoded flashing | ||||
| Buzzer | Start prompt, decode success prompt | ||||
| Keystroke | Trigger the scan | ||||
| Net weight of the host | 100g | ||||
| Includes packing and accessory weight | 300g | ||||
| Host size (length, width, height mm | 168mm*85mm*62mm | ||||
| Package size (length, width, height mm) | 240*140*89mm | ||||
| The length of the data line | 180CM(±3CM) | ||||
| Communication interface | USB port (drive-free), USB virtual serial port (install drive), serial port (drive-free) | ||||
| Operating voltage | 5V | ||||
