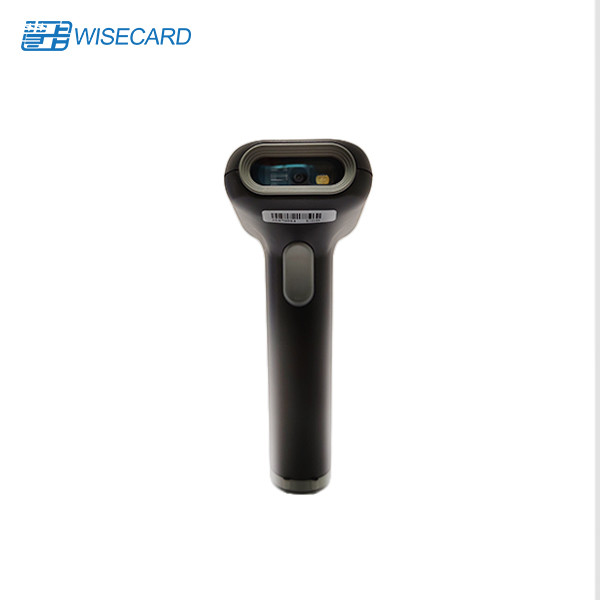

Auto Sense Handheld Barcode Scanner Portable USB 1D 2D Laser Barcode Reader
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Wisecard |
| Certification: | SGS/ROHS/CE/ISO/CE RED |
| Model Number: | barcode scanner |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | packing details: standard export carton, can be customized. port: Shen Zhen ports |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 pcs per week |
|
Detail Information |
|||
| Imaging Sensor: | 640*480CMOS | QR Code: | PDF 417、Micro PDF 417、Micro QR， DataMatrix、QR、Aztec |
|---|---|---|---|
| System Compatibility: | Linux、Android、WindowsXP、7、8、10、MacOS | Anti-fall: | Can Withstand 2 Meters Free Fall 5 Times |
| Waterproof And Dustproof: | IP54 Compliant | Operating Temperature Range: | -20-55°C |
| Host Size: | (length, Width, Height Mm)168mm*85mm*62mm | Package Size: | (length, Width, Height Mm)240*140*89mm |
| High Light: | 2D Wired Bluetooth Handheld Scanner,SGS Bluetooth Handheld Scanner,640x480 CMOS Handheld Barcode Reader |
||
Product Description
* Factory direct sale, cheap price and stable scanning.
* Supporting the RS232,PS2 and USB interface.
* Fast and accurate in reading 1D codes.
* No driver, plug and play.
* Support multiple languages; Error rate less 1/5 million.
* Comfortable button, service life of button up to 5million times.
* Made of durable ABS material, wear resistant and drop-proof.
* Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
|
Specification |
|||||
| Imaging sensor | 640*480CMOS | ||||
| Decode type | One dimensional code | EAN-8,EAN-13,EAN-132add-on,EAN-135add-on,ISSN,ISBN,UPC-A,UPC-E,Code 11Code 32,Code 39,Code 39 FULL ASCII,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,IS BT-128,GS 1-128,GS1DataBar(RSS 14) ,GS1DataBar Limited,GS1DataBar Expanded | |||
| QR code | PDF 417,Micro PDF 417,Micro QR, DataMatrix,QR,Aztec | ||||
| Scanning area | Test the barcode | Minimum range | Maximum range | ||
| UPC-13mil | 4cm | 35cm | |||
| 20mil code 39 | 7cm | 50cm | |||
| 20milQR Code | 2cm | 30cm | |||
| System compatibility | Linux,Android,WindowsXP,7,8,10,MacOS | ||||
| Supported keyboard | American-English, French, Italian, German, Spanish, Finnish, Japanese, Russian, Arabic, Irish, Bo, Dutch, Czech, Portuguese (Portuguese, Brazilian), Swedish, Turkish, Turkish, Greek, Belgian, French, British-English | ||||
| The type of barcode that can be swept | Film 1D and 2D bar code; | ||||
| Identify the angle range | The corner ± 360 degrees, the elevation ± 60 degrees, and the angle ± 70 degrees | ||||
| Anti-fall | Can withstand 2 meters free fall 5 times | ||||
| Waterproof and dustproof | IP54 compliant | ||||
| Operating temperature range | -20-55°C | ||||
| Save the temperature range | -20-60°C | ||||
| Light | Blue power LED, decoded flashing | ||||
| Buzzer | Start prompt, decode success prompt | ||||
| Keystroke | Trigger the scan | ||||
| Net weight of the host | 100g | ||||
| Includes packing and accessory weight | 300g | ||||
| Host size (length, width, height mm | 168mm*85mm*62mm | ||||
| Package size (length, width, height mm) | 240*140*89mm | ||||
| The length of the data line | 180CM(±3CM) | ||||
| Communication interface | USB port (drive-free), USB virtual serial port (install drive), serial port (drive-free) | ||||
| Operating voltage | 5V | ||||
Q: Do you offer warranty for the device?
A: Yes, we offer one year warranty& lifelong technical support
Q: What is your MOQ
A: MOQ is 1pcs
Q: What is your payment term?
A: T/T is preferred
Q: How to get software and SDK?
A: Software and SDK is free. Will share download link via drop box after you place order.
