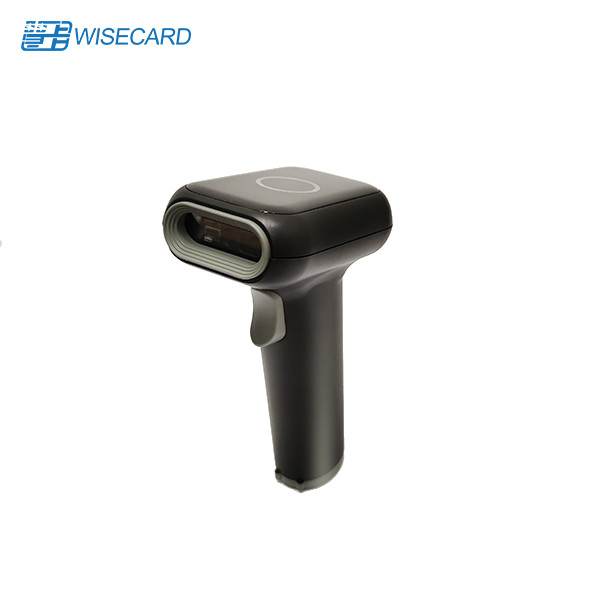

640x480 CMOS Bluetooth Barcode Scanner Decoded Flashing PDF 417

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : packing details: standard export carton, can be customized. port: Shen Zhen ports Delivery Time : 7 work days
Payment Terms : T/T Supply Ability : 100,000 pcs per week
Place of Origin: China Brand Name: Wisecard
Certification: SGS/ROHS/CE/ISO/CE RED Model Number: barcode scanner

Detail Information

Imaging Sensor: 640*480 CMOS QR Code: PDF 417、Micro PDF 417、Micro QR, DataMatrix、QR、Aztec
System Compatibility: Linux、Android、WindowsXP、7、8、10、MacOS Anti-fall: Can Withstand 2 Meters Free Fall 5 Times
Waterproof And Dustproof: IP54 Compliant Operating Temperature Range: -20-55°C
Host Size: (length, Width, Height Mm)168mm*85mm*62mm Package Size: (length, Width, Height Mm)240*140*89mm
High Light:

640x480 CMOS Bluetooth Barcode Scanner

,

Decoded Flashing Bluetooth Barcode Scanner

,

PDF 417 Handheld Barcode Reader

Product Description

QR Code Scanner Handheld Wireless Blue Tooth 2D Barcode Scanner Android Barcode Reader

EASY TO MANAGE

Management is simple — no experienced IT personnel required. Our no-cost tools make it easy to manage scanners in all your locations and develop a custom scanning application to best meet your specific business needs. The long-lasting battery in the cordless it will likely never need to be replaced during the lifecycle of the scanner, eliminating the need to purchase and manage a battery pool. And with Wisecard’s proprietary Wi-Fi Friendly Mode, you can confidently deploy its cordless models without worrying about interference with your wireless local area network (WLAN).




Specification

Imaging sensor 640*480CMOS
Decode type One dimensional code EAN-8,EAN-13,EAN-132add-on,EAN-135add-on,ISSN,ISBN,UPC-A,UPC-E,Code 11Code 32,Code 39,Code 39 FULL ASCII,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,IS BT-128,GS 1-128,GS1DataBar(RSS 14) ,GS1DataBar Limited,GS1DataBar Expanded
QR code PDF 417,Micro PDF 417,Micro QR, DataMatrix,QR,Aztec
Scanning area Test the barcode Minimum range Maximum range
UPC-13mil 4cm 35cm
20mil code 39 7cm 50cm
20milQR Code 2cm 30cm
System compatibility Linux,Android,WindowsXP,7,8,10,MacOS
Supported keyboard American-English, French, Italian, German, Spanish, Finnish, Japanese, Russian, Arabic, Irish, Bo, Dutch, Czech, Portuguese (Portuguese, Brazilian), Swedish, Turkish, Turkish, Greek, Belgian, French, British-English
The type of barcode that can be swept Film 1D and 2D bar code;
Identify the angle range The corner ± 360 degrees, the elevation ± 60 degrees, and the angle ± 70 degrees
Anti-fall Can withstand 2 meters free fall 5 times
Waterproof and dustproof IP54 compliant
Operating temperature range -20-55°C
Save the temperature range -20-60°C
Light Blue power LED, decoded flashing
Buzzer Start prompt, decode success prompt
Keystroke Trigger the scan
Net weight of the host 100g
Includes packing and accessory weight 300g
Host size (length, width, height mm 168mm*85mm*62mm
Package size (length, width, height mm) 240*140*89mm
The length of the data line 180CM(±3CM)
Communication interface USB port (drive-free), USB virtual serial port (install drive), serial port (drive-free)
Operating voltage 5V



640x480 CMOS Bluetooth Barcode Scanner Decoded Flashing PDF 417 0

640x480 CMOS Bluetooth Barcode Scanner Decoded Flashing PDF 417 1



Company Information:

Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.



Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.



Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.



Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
