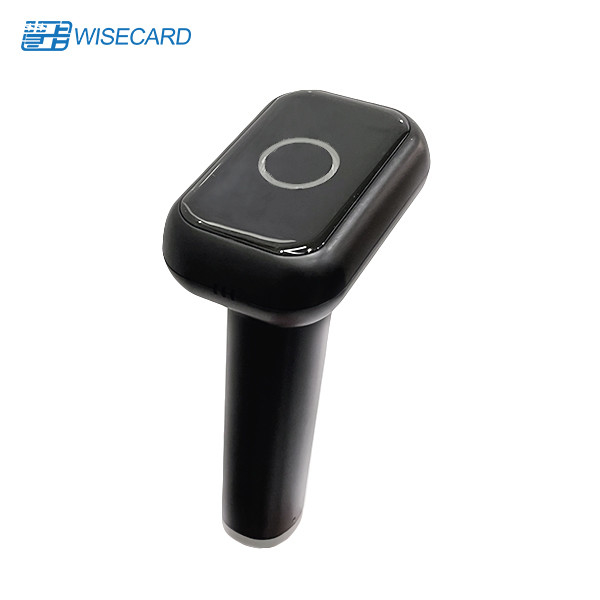

Auto Sense Handheld Barcode Scanner Portable USB 1D 2D Laser Barcode Reader
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | packing details: standard export carton, can be customized. port: Shen Zhen ports | Delivery Time : | 7 work days |
| Payment Terms : | T/T | Supply Ability : | 100,000 pcs per week |
| Place of Origin: | China | Brand Name: | Wisecard |
|---|---|---|---|
| Certification: | SGS/ROHS/CE/ISO/CE RED | Model Number: | barcode scanner |
|
Detail Information |
|||
| Imaging Sensor: | 640*480 CMOS | QR Code: | PDF 417、Micro PDF 417、Micro QR， DataMatrix、QR、Aztec |
|---|---|---|---|
| System Compatibility: | Linux、Android、WindowsXP、7、8、10、MacOS | Anti-fall: | Can Withstand 2 Meters Free Fall 5 Times |
| Waterproof And Dustproof: | IP54 Compliant | Operating Temperature Range: | -20-55°C |
| Host Size: | (length, Width, Height Mm)168mm*85mm*62mm | Package Size: | (length, Width, Height Mm)240*140*89mm |
| High Light: | Logistic CCD Wired Barcode Scanner,IP54 Wired Barcode Scanner,UPC 13mil QR Barcode Reader |
||
Product Description
Logistic CCD Wired Barcode Scanner Handheld IP54 1D 2D UPC 13mil
Description Of Smart Scanner
WCT-Q3 Bluetooth CCD barcode scanner that can read 1D & 2D barcodes both on paper and screen. Decode type of WCT-Q3 are various, include EAN-8,EAN-13,EAN-132add-on,EAN-135add-on,ISSN,ISBN,UPC-A,UPC-E,Code 11Code 32,Code 39,Code 39 FULL ASCII,Code 93 and etc. The scanning area of UPC-13mil is from 4 to 35cm. Linux,Android,WindowsXP,7,8,10,MacOS are all supported.
Feature Of Smart Scanner
1. With 640*480CMOS Imaging sensor
2. Buzzer: Start prompt, decode success prompt
3. Support Turkish, Greek, Belgian, French, British-English
4. Anti-fall: Can withstand 2 meters free fall 5 times
| Specification | |||||
| Imaging sensor | 640*480CMOS | ||||
| Decode type | One dimensional code | EAN-8,EAN-13,EAN-132add-on,EAN-135add-on,ISSN,ISBN,UPC-A,UPC-E,Code 11Code 32,Code 39,Code 39 FULL ASCII,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,IS BT-128,GS 1-128,GS1DataBar(RSS 14) ,GS1DataBar Limited,GS1DataBar Expanded | |||
| QR code | PDF 417,Micro PDF 417,Micro QR, DataMatrix,QR,Aztec | ||||
| Scanning area | Test the barcode | Minimum range | Maximum range | ||
| UPC-13mil | 4cm | 35cm | |||
| 20mil code 39 | 7cm | 50cm | |||
| 20milQR Code | 2cm | 30cm | |||
| System compatibility | Linux,Android,WindowsXP,7,8,10,MacOS | ||||
| Supported keyboard | American-English, French, Italian, German, Spanish, Finnish, Japanese, Russian, Arabic, Irish, Bo, Dutch, Czech, Portuguese (Portuguese, Brazilian), Swedish, Turkish, Turkish, Greek, Belgian, French, British-English | ||||
| The type of barcode that can be swept | Film 1D and 2D bar code; | ||||
| Identify the angle range | The corner ± 360 degrees, the elevation ± 60 degrees, and the angle ± 70 degrees | ||||
| Anti-fall | Can withstand 2 meters free fall 5 times | ||||
| Waterproof and dustproof | IP54 compliant | ||||
| Operating temperature range | -20-55°C | ||||
| Save the temperature range | -20-60°C | ||||
| Light | Blue power LED, decoded flashing | ||||
| Buzzer | Start prompt, decode success prompt | ||||
| Keystroke | Trigger the scan | ||||
| Net weight of the host | 100g | ||||
| Includes packing and accessory weight | 300g | ||||
| Host size (length, width, height mm | 168mm*85mm*62mm | ||||
| Package size (length, width, height mm) | 240*140*89mm | ||||
| The length of the data line | 180CM(±3CM) | ||||
| Communication interface | USB port (drive-free), USB virtual serial port (install drive), serial port (drive-free) | ||||
| Operating voltage | 5V | ||||
Application Of Smart POS Terminal
1. Retail
2. Restaurant& hospitality
3. Field services
4. Warehouse &manufacturing
FAQ
1. Q: What kind of brand promotion do you have?
A: Official website, Wechat, Linkedin, Twitter and Facebook. Also, there are more than ten annual exhibitions at home and abroad.
2. Q: How do you control quality?
A: We are a company with ISO9001:2015 international QMS certification. Our products have obtained CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI certifications.
3.Q: What are your product command?
A:Thermal printer compatible with ESCPOS. Label printer compatible with TSPL EPL DPL ZPL emulation.
4.Q: What’s your leading time?
A: For less than 1000pcs, 7-10 working days. For more than 1000pcs, 10-15 working days.
5.Q: What's your delivery terms ?
A: Delivery terms can be EX-WORKS, FOB or C&F.
6.Q: If the goods are damaged, what can we do ?
A: 1% FOC parts dispatched with shipment. When it is damaged, you can replace it directly.
7.Q: What is printer defective rate?
A: Less than 0.3%
8.Q: What is the Warranty for your printers?
A: We support 12 months for all of our products.
9.Q: What’s your main product line?
A: Specialized in Receipt printers, Label Printers, Mobile Printers, Panel printers, Kiosk printer, Dot Matrix Printer , Bluetooth printers.
