CCD Waterproof Handheld Barcode Scanner 20mil QR 640×480 CMOS Rugged

CCD Waterproof Handheld Barcode Scanner 20mil QR 640×480 CMOS Rugged
CCD Waterproof Handheld Barcode Scanner 20mil QR 640×480 CMOS Rugged

Large Image :  CCD Waterproof Handheld Barcode Scanner 20mil QR 640×480 CMOS Rugged

Product Details:
Place of Origin: China
Brand Name: WCT
Certification: CE
Model Number: Q3
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 pc per box, 10 pc per carton
Delivery Time: 1-4 weeks
Payment Terms: T/T
Supply Ability: 10000 Set/Sets per Month
Contact Now
Detailed Product Description
Imaging Sensor: 640*480 CMOS System Compatibility: Linux/Android/WindowsXP、7、8、10/MacOS
The Type Of Barcode That Can Be Swept: 1D/2D Bar Code Waterproof And Dustproof: IP54 Compliant
Operating Temperature Rage: -20-55°C Net Weight Of The Host: 100g
Includes Packing And Accessory Weight: 300g Host Size (length, Width, Height Mm: 168mm*85mm*62mm
Highlight:

CCD Waterproof Handheld Barcode Scanner

,

20mil QR Handheld Barcode Scanner

,

640×480 CMOS Rugged Android Pda

CCD Waterproof Handheld Barcode Scanner 20mil QR 640×480 CMOS Rugged

Description Of Smart Scanner

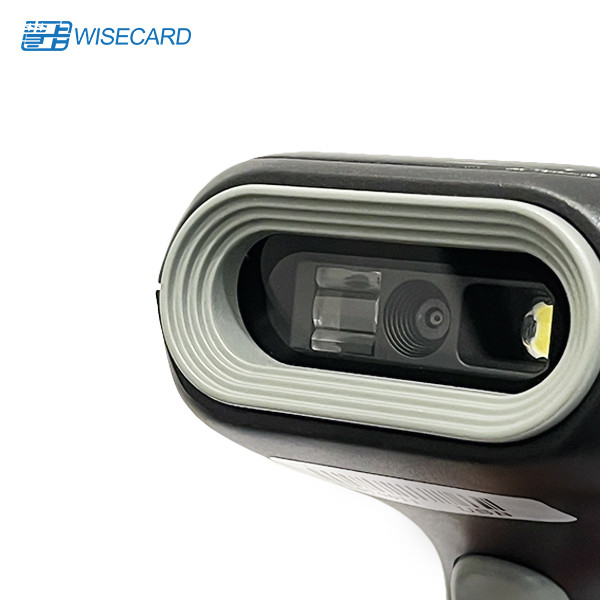

WCT-Q3 Bluetooth CCD barcode scanner that can read 1D & 2D barcodes both on paper and screen. Wisecard has been providing top-notch scanner for a decade. WCT-Q3 is a waterproof handheld barcode scanner which widely be used in industries of retail/restaurant/inventory. Strong system compatibility allows users to scan any codes at any circumstances.





Feature Of Smart Scanner

1. 640*480CMOS Imaging sensor which can capture every details with faultless.

2. Linux,Android,WindowsXP,7,8,10,MacOS are all supported

3. Portuguese (Portuguese, Brazilian), Swedish, Turkish, Turkish and etc., languages are supported

4. Scanning area of UPC-13mil is from 4cm to 35cm



Specification
Imaging sensor 640*480CMOS
Decode type One dimensional code EAN-8,EAN-13,EAN-132add-on,EAN-135add-on,ISSN,ISBN,UPC-A,UPC-E,Code 11Code 32,Code 39,Code 39 FULL ASCII,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,IS BT-128,GS 1-128,GS1DataBar(RSS 14) ,GS1DataBar Limited,GS1DataBar Expanded
QR code PDF 417,Micro PDF 417,Micro QR, DataMatrix,QR,Aztec
Scanning area Test the barcode Minimum range Maximum range
UPC-13mil 4cm 35cm 　
20mil code 39 7cm 50cm 　
20milQR Code 2cm 30cm 　
System compatibility Linux,Android,WindowsXP,7,8,10,MacOS
Supported keyboard American-English, French, Italian, German, Spanish, Finnish, Japanese, Russian, Arabic, Irish, Bo, Dutch, Czech, Portuguese (Portuguese, Brazilian), Swedish, Turkish, Turkish, Greek, Belgian, French, British-English
The type of barcode that can be swept Film 1D and 2D bar code;
Identify the angle range The corner ± 360 degrees, the elevation ± 60 degrees, and the angle ± 70 degrees
Anti-fall Can withstand 2 meters free fall 5 times
Waterproof and dustproof IP54 compliant
Operating temperature range -20-55°C
Save the temperature range -20-60°C
Light Blue power LED, decoded flashing
Buzzer Start prompt, decode success prompt
Keystroke Trigger the scan
Net weight of the host 100g
Includes packing and accessory weight 300g
Host size (length, width, height mm 168mm*85mm*62mm
Package size (length, width, height mm) 240*140*89mm
The length of the data line 180CM(±3CM)
Communication interface USB port (drive-free), USB virtual serial port (install drive), serial port (drive-free)
Operating voltage 5V
