Auto Sense Handheld Barcode Scanner Portable USB 1D 2D Laser Barcode Reader
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | packing details: standard export carton, can be customized. port: Shen Zhen ports | Delivery Time : | 7 work days |
| Payment Terms : | T/T | Supply Ability : | 100,000 pcs per week |
| Place of Origin: | China | Brand Name: | Wisecard |
|---|---|---|---|
| Certification: | SGS/ROHS/CE/ISO/CE RED | Model Number: | barcode scanner |
|
Detail Information |
|||
| Imaging Sensor: | 1280*1024 CMOS | Decode Accuracy: | Code 39 4mil |
|---|---|---|---|
| System Compatibility: | Linux、Android、WindowsXP、7、8、10、MacOS | Code Available: | 1D, 2D Codes Printing On Paper Or Film Or Screen |
| Waterproof And Dustproof: | IP54 Compliant | Net Weight: | 372g |
| Environment Light: | 0-70000LUX | Conserve Humidity: | 5-95% Non-Condensed |
| High Light: | 1280×1024 QR Code Scanner,CMOS QR Code Scanner,ISSN Desktop Barcode Scanner |
||
Product Description

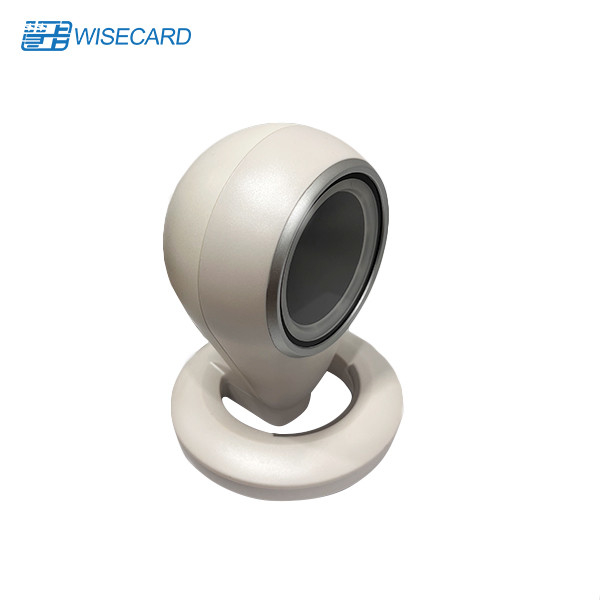

Description Of Desktop Scanner
The WCT-A3 barcode scanner is area imager, omnidirectional presentation scanner is capable of reading 1D/2D barcodes printed on paper or displayed on a mobile phone screen. Designed for a wide variety of applications in retail such as Pharmacy, Cosmetics & drug stores, smaller sized stores, kiosks and in a ticketing booth for reading and validating mobile or paper tickets.
Feature Of Desktop Scanner
* Desktop Hand-Free design free your hand and improve the working efficiency.
* Plug and play, no need for any driver or software. Easy installation with USB cable.
* Extra large scanning angle, identify screen code, incomplete code and fuzzy code easily.
* Super decoding ability, fast to scan both printed and mobile phone screen 1D/2D barcodes.
* Auto sense ,when the scanner reaches the barcode ,it will automatically decoding the barcode.
* Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
Specification Of Desktop Scanner
|
Performance Parameters |
Picture Sensor | 1280*1024 CMOS | |||||||
| Capacity | 1D | EAN-8,EAN-13,EAN-13 2 add-on, EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code11,Code 32,Code 39,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,GS1-128,GS1 DataBar(RSS14),GS1 DataBar Limited,GS1 DataBar Expanded | |||||||
| 2D | PDF417,MicroPDF417,MicroQR, Data Matrix,QR,Aztec | ||||||||
| Depth of Field | Tested Code | Minimum | Maximum | ||||||
| 5mil code39 | 1cm | 15cm | |||||||
| UPC-13mil | 1cm | 33cm | |||||||
| 20 mil code39 | 1cm | 40cm | |||||||
| 20 mil QR Code | 1cm | 28cm | |||||||
| System Compatibility | Linux,Android,Windows XP,7,8,10,MACOS | ||||||||
| Decode Accuracy | Code 39 4mil | ||||||||
| Code Available | 1D, 2D Codes printing on Paper or film or screen | ||||||||
| Scan Rate | 30 Fps | ||||||||
| Scan Pattern | Automatic induction continuous scan | ||||||||
| Keyboard support | American-English, French, Italian, German, Spanish, Japanese, Russian, Arabic, Irish, Polish, Dutch, Czech, Portuguese (Portuguese, Brazilian), Swedish, Turkish F, Turkish Q, Greek, Finnish, Belgian (French), British-English | ||||||||
| Barcode language support | Simplified Chinese (win system) | ||||||||
| Invoice function | Support( for China market only(win system) | ||||||||
| Secondary development | Not support | ||||||||
| Barcode output editing | support adding prefix and suffixes, hidden characters | ||||||||
| Symbol Contrast | 20% | ||||||||
| Scanning Angle | Horizontal : ±70° Vertical:±60° Rotated: ±360° | ||||||||
|
Human- computer interaction |
Indicator light | Red & Blue indicator light | |||||||
| Buzzer | Start Tips,Reading code tips | ||||||||
|
Environment Parameters |
Drop | Design to withstand 1.5 M drops to concrete 3 times | |||||||
| Environmental Sealing | IP54 | ||||||||
| Working Temperature | -20-55℃ | ||||||||
| Conserve Temperature | -20-60℃ | ||||||||
| Working Humidity | 5-95% Non-Condensed | ||||||||
| Conserve Humidity | 5-95% Non-Condensed | ||||||||
| Environment Light | 0-70000LUX | ||||||||
|
Physical Parameters |
Net Weight | 372g | |||||||
| Packing Weight | 500g | ||||||||
| Data line length | 180CM(±3CM) | ||||||||
| Host Size(L*W*H) | 104.8*104.8*147mm | ||||||||
| Packing Size(L*W*H) | 180mm*168mm*121mm | ||||||||
| Interface | USB(Drive free), serial port | ||||||||
| working voltage | 5V | ||||||||
|
USB
|
Standby current | 133mA/0.665W | Serial port | Standby current | 357mA/1.785W | ||||
| Working current | 133mA/0.665w | Working current | 357mA/1.785W | ||||||
| Working current(Max) | 175mA/0.875W | Working current(Max) | 358mA/1.79W | ||||||
Application Of Smart POS Terminal
1. Retail
2. Restaurant& hospitality
3. Field services
4. Warehouse &manufacturing
FAQ
Q: What payment methods your company accept?
A: We accept most of the payment methods, but mainly accept T/T.
Q: How long is the warranty time?
As part of our multiple services, we can offer 1 to 3 years warranty on all our products. Secure yourself and ask us about our extended warranty programs.
Q: Accept Sample?
A: Sample is available. We always supply sample to our clients for testing.
Q: Can you accept customized order?
A: Welcome, We have our own hardware factory and component engineer. Please send your own design and logo, we could make it as your idea/design.
