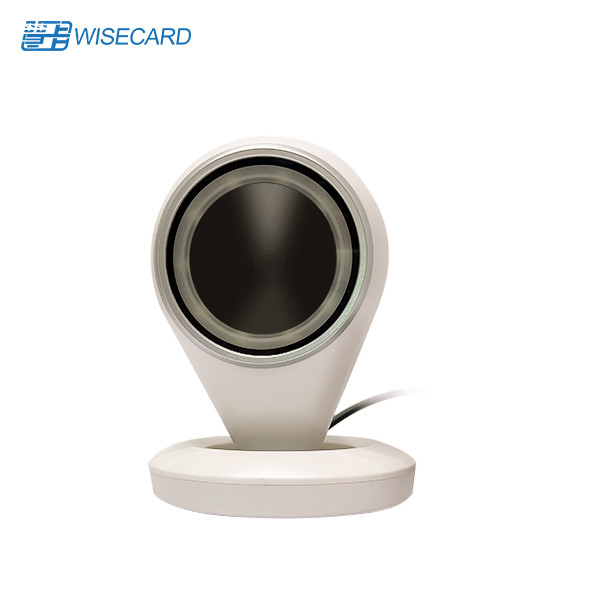

Auto Sense Handheld Barcode Scanner Portable USB 1D 2D Laser Barcode Reader
Contact Person : Steven Yao
Phone Number : +86-13424312532
WhatsApp : +8613424312532
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | packing details: standard export carton, can be customized. port: Shen Zhen ports | Delivery Time : | 7 work days |
| Payment Terms : | T/T | Supply Ability : | 100,000 pcs per week |
| Place of Origin: | China | Brand Name: | Wisecard |
|---|---|---|---|
| Certification: | SGS/ROHS/CE/ISO/CE RED | Model Number: | barcode scanner |
|
Detail Information |
|||
| Imaging Sensor: | 1280*1024 CMOS | Decode Accuracy: | Code 39 4mil |
|---|---|---|---|
| System Compatibility: | Linux、Android、WindowsXP、7、8、10、MacOS | Code Available: | 1D, 2D Codes Printing On Paper Or Film Or Screen |
| Waterproof And Dustproof: | IP54 Compliant | Standby Current: | 133mA/0.665W |
| Working Current: | 133mA/0.665w | Working Current(Max): | 175mA/0.875W |
| High Light: | UPC 13mil Desktop Barcode Scanner,UPC A Desktop Barcode Scanner,CMOS Handheld Qr Code Scanner |
||
Product Description
Description Of Desktop Scanner
High frequency ED soft light technology, soft light lamp does not flicker, completely eliminate the stimulation and injury to human eyes. Support online upgrade, custom update code system functions only need to update the firmware, completely solve customer worries. High frame rate CMOS sensor and customized lens, combined with excellent image algorithm, can quickly recognize all kinds of bar codes.
Feature Of Desktop Scanner
1. With 1280*1024 CMOS Imaging sensor, which can capture bigger and detailed image.
2. 1DCapacity: EAN-8,EAN-13,EAN-13 2 add-on, EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code11,Code 32 and etc.
3. 5mil code39: 1-15cm
4. UPC-13mil: 1-33cm
Specification Of Desktop Scanner
|
Performance Parameters |
Picture Sensor | 1280*1024 CMOS | |||||||
| Capacity | 1D | EAN-8,EAN-13,EAN-13 2 add-on, EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code11,Code 32,Code 39,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,GS1-128,GS1 DataBar(RSS14),GS1 DataBar Limited,GS1 DataBar Expanded | |||||||
| 2D | PDF417,MicroPDF417,MicroQR, Data Matrix,QR,Aztec | ||||||||
| Depth of Field | Tested Code | Minimum | Maximum | ||||||
| 5mil code39 | 1cm | 15cm | |||||||
| UPC-13mil | 1cm | 33cm | |||||||
| 20 mil code39 | 1cm | 40cm | |||||||
| 20mil QR Code | 1cm | 28cm | |||||||
| System Compatibility | Linux,Android,Windows XP,7,8,10,MACOS | ||||||||
| Decode Accuracy | Code 39 4mil | ||||||||
| Code Available | 1D, 2D Codes printing on Paper or film or screen | ||||||||
| Scan Rate | 30 Fps | ||||||||
| Scan Pattern | Automatic induction continuous scan | ||||||||
| Keyboard support | American-English, French, Italian, German, Spanish, Japanese, Russian, Arabic, Irish, Polish, Dutch, Czech, Portuguese (Portuguese, Brazilian), Swedish, Turkish F, Turkish Q, Greek, Finnish, Belgian (French), British-English | ||||||||
| Barcode language support | Simplified Chinese (win system) | ||||||||
| Invoice function | Support( for China market only(win system) | ||||||||
| Secondary development | Not support | ||||||||
| Barcode output editing | support adding prefix and suffixes, hidden characters | ||||||||
| Symbol Contrast | 20% | ||||||||
| Scanning Angle | Horizontal : ±70° Vertical:±60° Rotated: ±360° | ||||||||
|
Human- computer interaction |
Indicator light | Red & Blue indicator light | |||||||
| Buzzer | Start Tips,Reading code tips | ||||||||
|
Environment Parameters |
Drop | Design to withstand 1.5 M drops to concrete 3 times | |||||||
| Environmental Sealing | IP54 | ||||||||
| Working Temperature | -20-55℃ | ||||||||
| Conserve Temperature | -20-60℃ | ||||||||
| Working Humidity | 5-95% Non-Condensed | ||||||||
| Conserve Humidity | 5-95% Non-Condensed | ||||||||
| Environment Light | 0-70000LUX | ||||||||
|
Physical Parameters |
Net Weight | 372g | |||||||
| Packing Weight | 500g | ||||||||
| Data line length | 180CM(±3CM) | ||||||||
| Host Size(L*W*H) | 104.8*104.8*147mm | ||||||||
| Packing Size(L*W*H) | 180mm*168mm*121mm | ||||||||
| Interface | USB(Drive free), serial port | ||||||||
| working voltage | 5V | ||||||||
|
USB
|
Standby current | 133mA/0.665W | Serial port | Standby current | 357mA/1.785W | ||||
| Working current | 133mA/0.665w | Working current | 357mA/1.785W | ||||||
| Working current(Max) | 175mA/0.875W | Working current(Max) | 358mA/1.79W | ||||||
Application Of Smart POS Terminal
1. Retail
2. Restaurant& hospitality
3. Field services
4. Warehouse &manufacturing
Why Choose Us
1. We have our own production factory help us make sure of our delivery times and product quality. Over 10 years of experience gives us the edge!
2. Our professional technical team can quickly provide pre-sales and after-sales service. and we have full experience in construction, our engineer team is integration of theory and practice.
3. We currently provide OEM/ODM services for many customers worldwide. We have full design experience for indoor and outdoor display.
4.Many of our current products are available in a very fast manner in order for you to test and approve of our strong quality of goods. Don’t be fooled by some factories that will offer the best products below the market price, you pay for what you get is the safe way to look at your over sea’s purchases.
5. As part of our multiple services, we can offer 1 year warranty on all our products. Secure yourself and ask us about our extended warranty programs.
