Highlight:
4mil QR Code Scanner
, 70000LUX QR Code Scanner
, CMOS Desktop Barcode Scanner

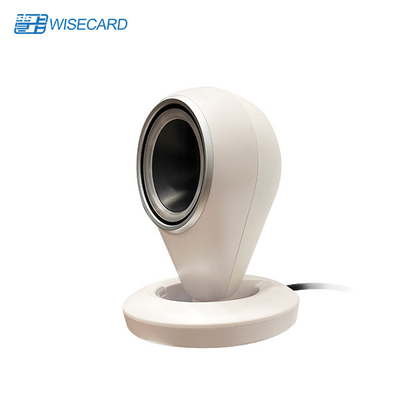

4mil QR Code Scanner 70000LUX WCT-A3 CMOS Desktop Barcode Scanner
WCT-A3 QR Code Scanner 2022 New Design Desktop Barcode Scanner China Manufacturer OEM ODM
Description Of Desktop Scanner
* Compatible System - Windows, Mac OS, POS Cash Register, Linux.
* Desktop Hand-Free design free your hand and improve the working efficiency.
* Plug and play, no need for any driver or software. Easy installation with USB cable.
* Extra large scanning angle, identify screen code, incomplete code and fuzzy code easily.
* Super decoding ability, fast to scan both printed and mobile phone screen 1D/2D barcodes.
* Auto sense ,when the scanner reaches the barcode ,it will automatically decoding the barcode.
* Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
Feature Of Desktop Scanner
1. With 1280*1024 CMOS Imaging sensor, which can capture bigger and detailed image.
2. 1DCapacity: EAN-8,EAN-13,EAN-13 2 add-on, EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code11,Code 32 and etc.
3. 5mil code39: 1-15cm
4. UPC-13mil: 1-33cm
Specification Of Desktop Scanner
|
Performance
Parameters
|
Picture Sensor |
1280*1024 CMOS |
| Capacity |
1D |
EAN-8,EAN-13,EAN-13 2 add-on, EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code11,Code 32,Code 39,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,GS1-128,GS1 DataBar(RSS14),GS1 DataBar Limited,GS1 DataBar Expanded |
| 2D |
PDF417,MicroPDF417,MicroQR, Data Matrix,QR,Aztec |
| Depth of Field |
Tested Code |
Minimum |
Maximum |
| 5mil code39 |
1cm |
15cm |
| UPC-13mil |
1cm |
33cm |
| 20 mil code39 |
1cm |
40cm |
| 20 mil QR Code |
1cm |
28cm |
| System Compatibility |
Linux,Android,Windows XP,7,8,10,MACOS |
| Decode Accuracy |
Code 39 4mil |
| Code Available |
1D, 2D Codes printing on Paper or film or screen |
| Scan Rate |
30 Fps |
| Scan Pattern |
Automatic induction continuous scan |
| Keyboard support |
American-English, French, Italian, German, Spanish, Japanese, Russian, Arabic, Irish, Polish, Dutch, Czech, Portuguese (Portuguese, Brazilian), Swedish, Turkish F, Turkish Q, Greek, Finnish, Belgian (French), British-English |
| Barcode language support |
Simplified Chinese (win system) |
| Invoice function |
Support( for China market only(win system) |
| Secondary development |
Not support |
| Barcode output editing |
support adding prefix and suffixes, hidden characters |
| Symbol Contrast |
20% |
| Scanning Angle |
Horizontal : ±70° Vertical:±60° Rotated: ±360° |
|
Human-
computer interaction
|
Indicator light |
Red & Blue indicator light |
| Buzzer |
Start Tips,Reading code tips |
|
Environment
Parameters
|
Drop |
Design to withstand 1.5 M drops to concrete 3 times |
| Environmental Sealing |
IP54 |
| Working Temperature |
-20-55℃ |
| Conserve Temperature |
-20-60℃ |
| Working Humidity |
5-95% Non-Condensed |
| Conserve Humidity |
5-95% Non-Condensed |
| Environment Light |
0-70000LUX |
|
Physical
Parameters
|
Net Weight |
372g |
| Packing Weight |
500g |
| Data line length |
180CM(±3CM) |
| Host Size(L*W*H) |
104.8*104.8*147mm |
| Packing Size(L*W*H) |
180mm*168mm*121mm |
| Interface |
USB(Drive free), serial port |
| working voltage |
5V |
|
USB
|
Standby current |
133mA/0.665W |
Serial port |
Standby current |
357mA/1.785W |
| Working current |
133mA/0.665w |
Working current |
357mA/1.785W |
| Working current(Max) |
175mA/0.875W |
Working current(Max) |
358mA/1.79W |
Application Of Smart POS Terminal
1. Retail
2. Restaurant& hospitality
3. Field services
4. Warehouse &manufacturing
FAQ
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory, and we have the best structural Engineer, we hope to provide you with best screen and shape, so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q: Is your company a real manufacturer?
A: Our company is the professional manufacturer in Shenzhen, you are the mostly welcomed to visit our factory anytime.
Q: Does the product only use for school?
A: Our products are widely used in Hospital, School, office etc.
